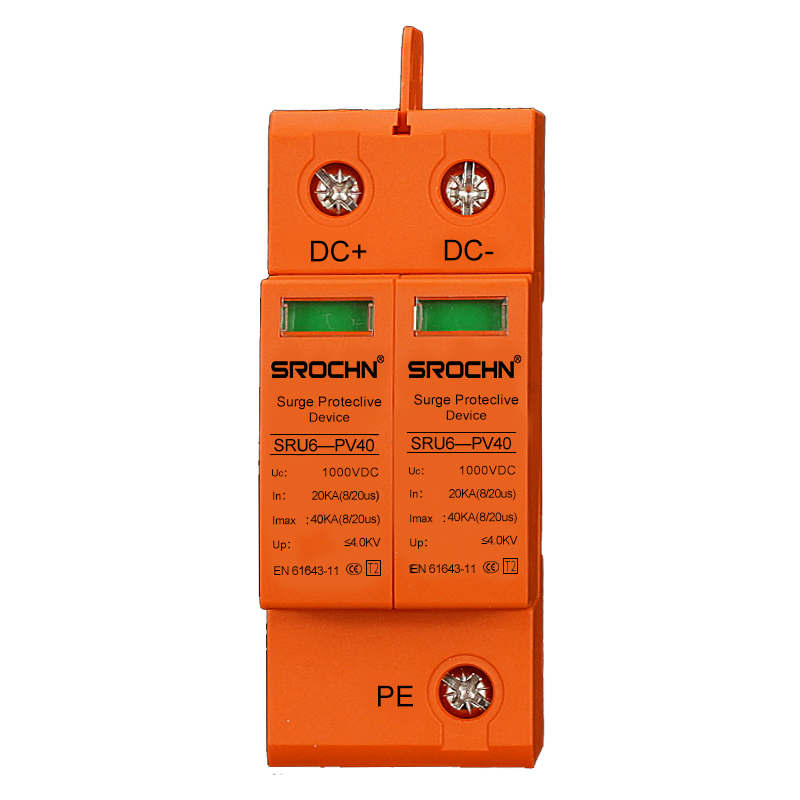

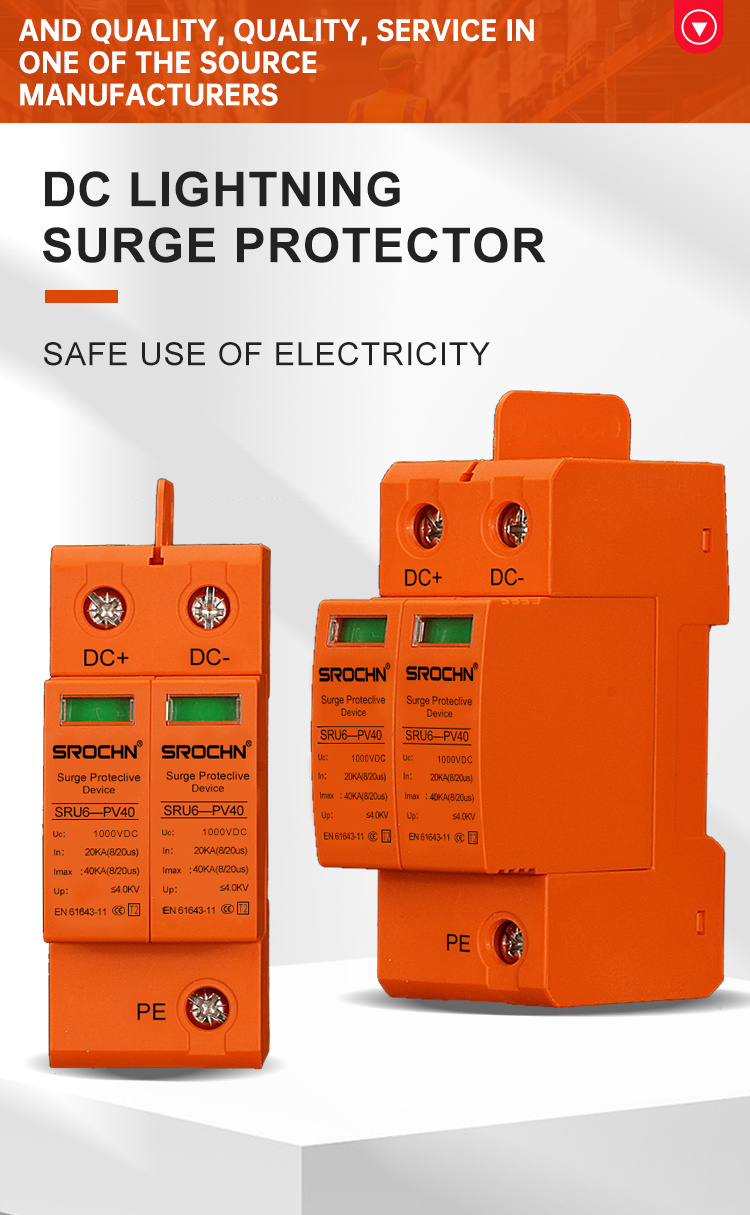

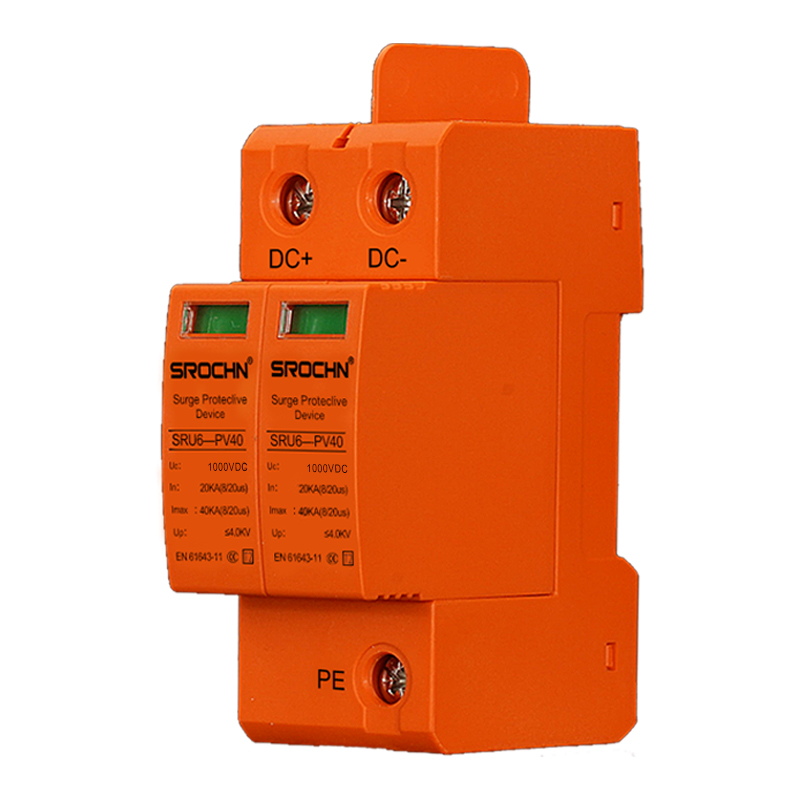

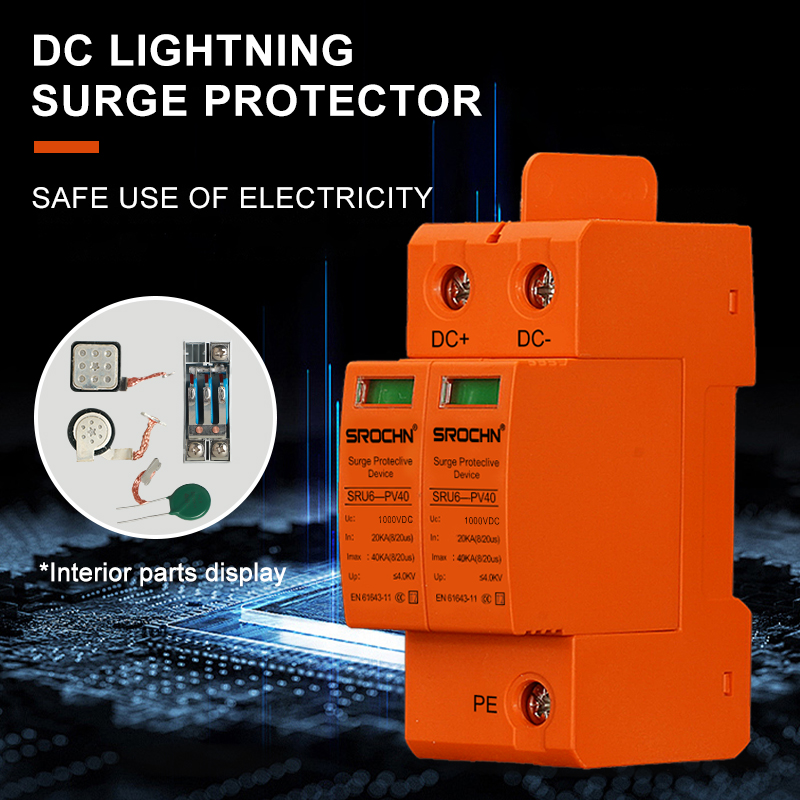

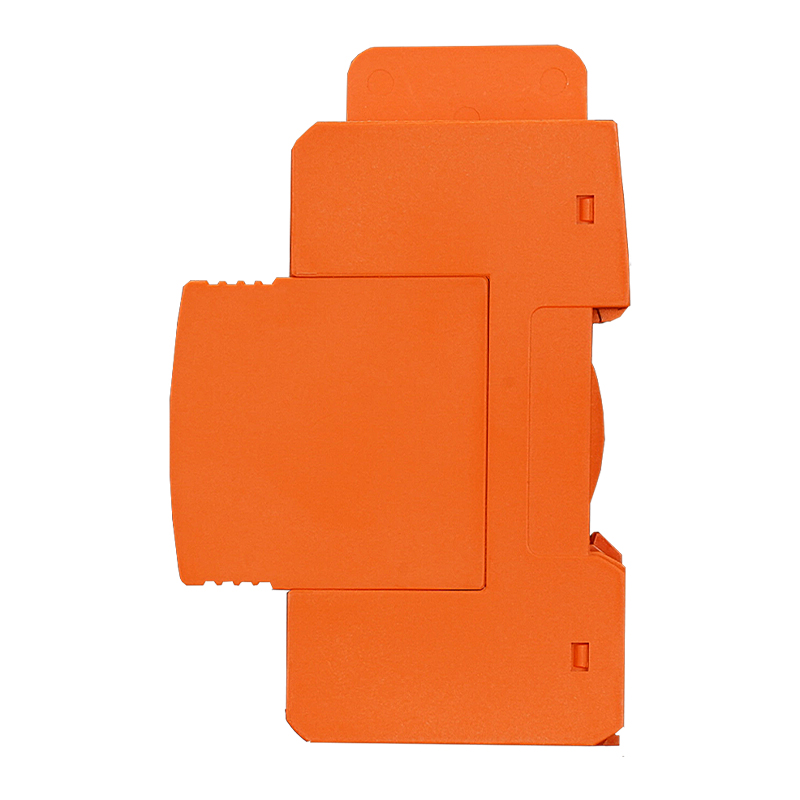

2P 1000VDC T2 40kA Orange Surge Protective Device 20kA SPD for UltraHigh Voltage DC Systems
Key Features and Advantages
• Ultra High Voltage Protection: Specifically engineered for 1000VDC systems, delivering superior surge protection for critical high voltage applications

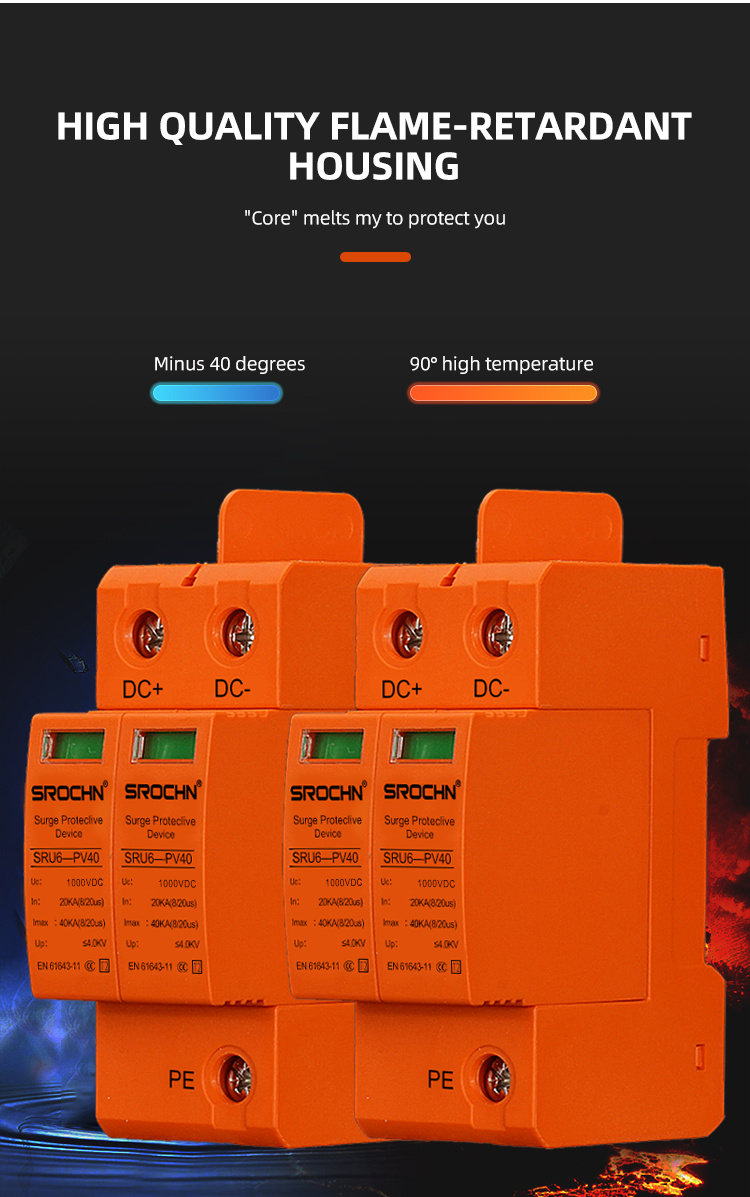

• High Visibility Design: Bright orange housing ensures easy identification and maintenance in electrical panels

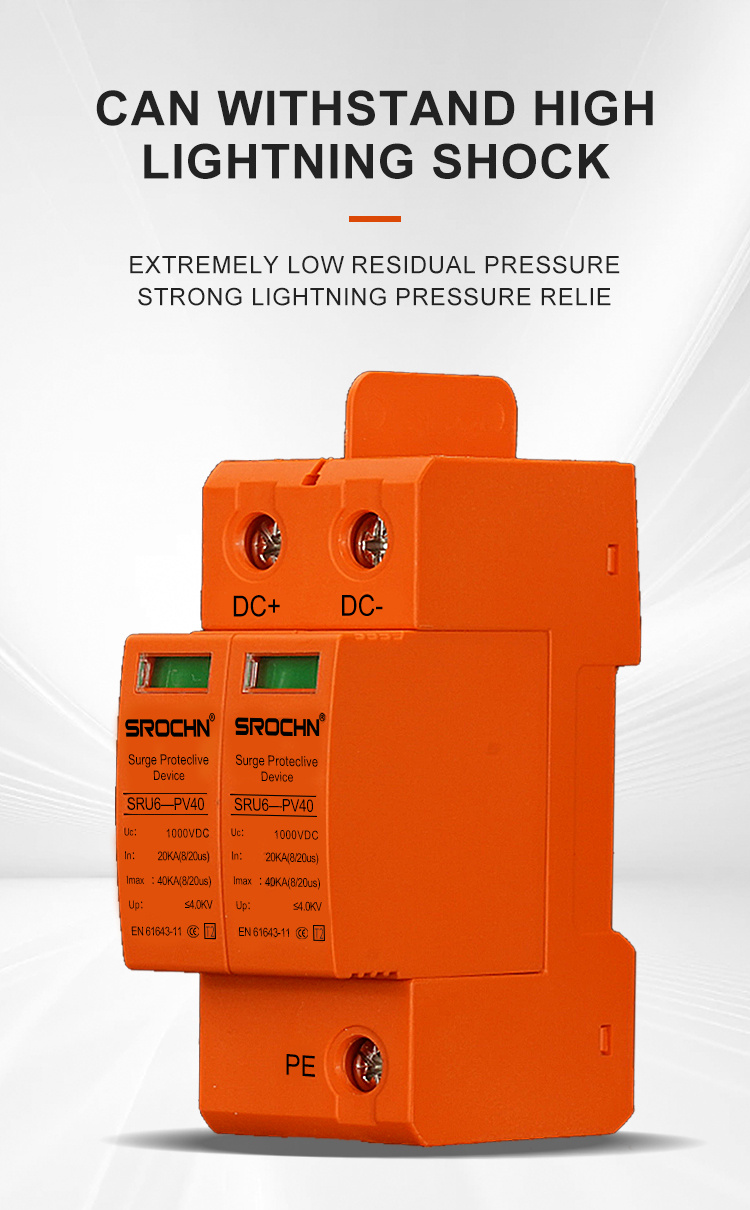

• Exceptional Surge Handling: 40kA maximum discharge capacity (8/20μs) provides robust defense against severe lightning strikes
• Space Optimized Configuration: Compact 2pole design maximizes space efficiency in control cabinets
• Advanced Protection Technology: Utilizes premium metal oxide varistors with ultrafast response time (<25ns)
• Enhanced Safety Systems: Integrated thermal disconnect protection and failsafe operation mechanism

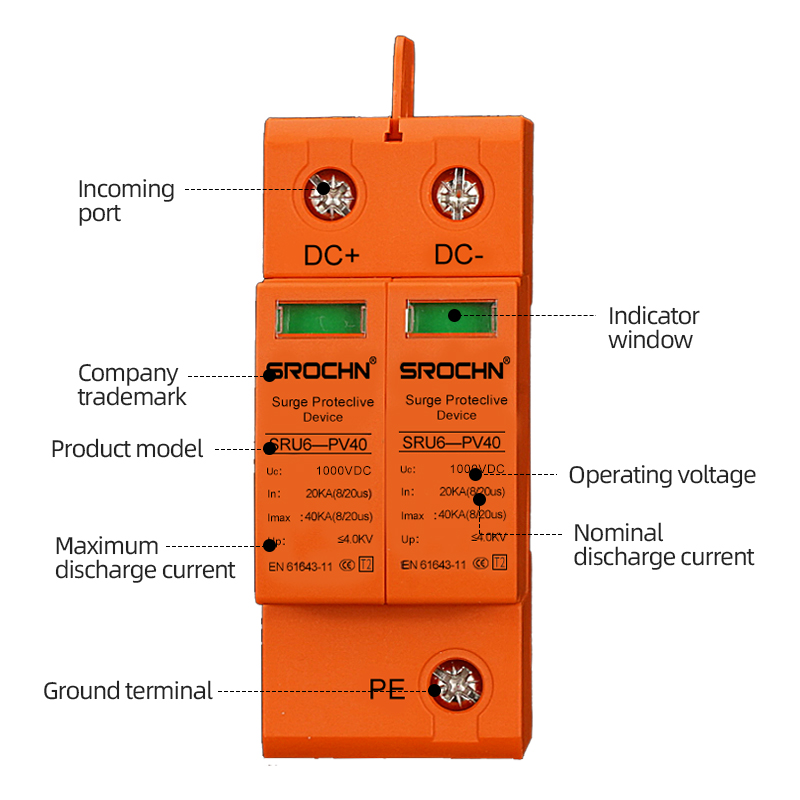

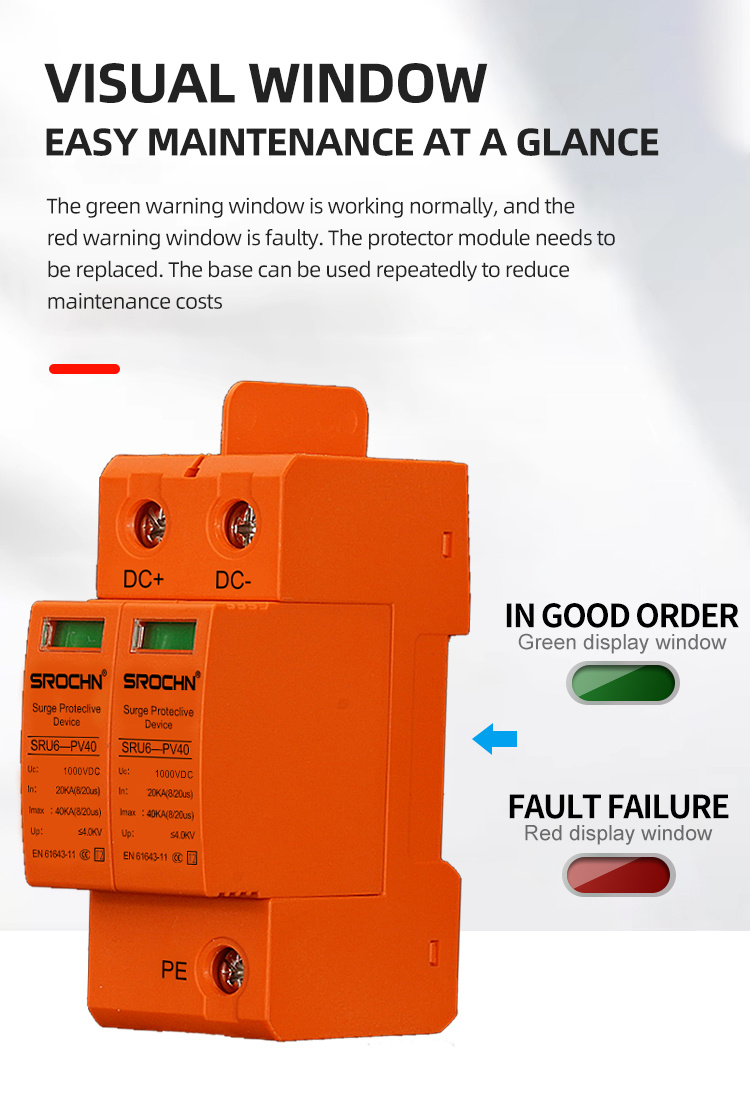

• Clear Status Monitoring: Visual LED indicators for instant operational status assessment

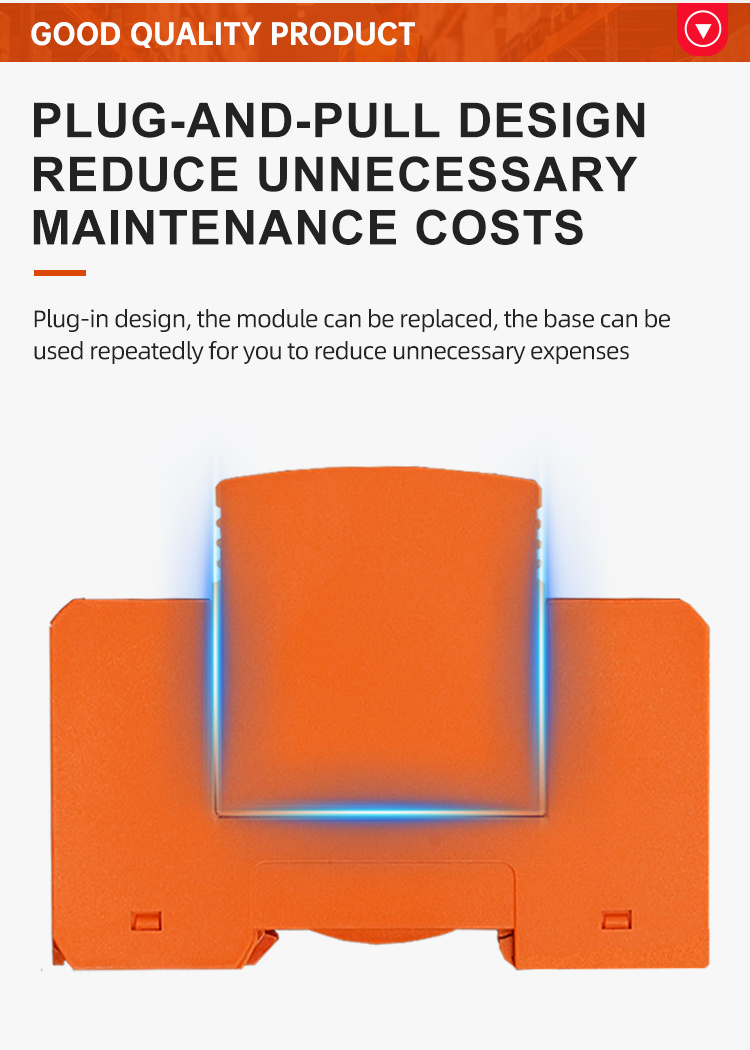

• Easy Installation: DIN rail mounting with screw terminal connections for quick deployment
Application Scenarios
Industrial High Voltage Systems: Protects PLCs, motor drives, and control equipment in manufacturing facilities
Utility Scale Solar Plants: Safeguards solar inverters and monitoring systems in large photovoltaic installations
EV Charging Infrastructure: Provides protection for ultrafast DC charging stations and power networks
Telecommunications: Ensures reliability of communication equipment in data centers and base stations
Railway Systems: Protects signaling and control equipment in electrified railway applications
Marine Applications: Suitable for marine electronics and offshore power systems
Energy Storage Systems: Ideal for battery storage and power conversion systems in ESS applications

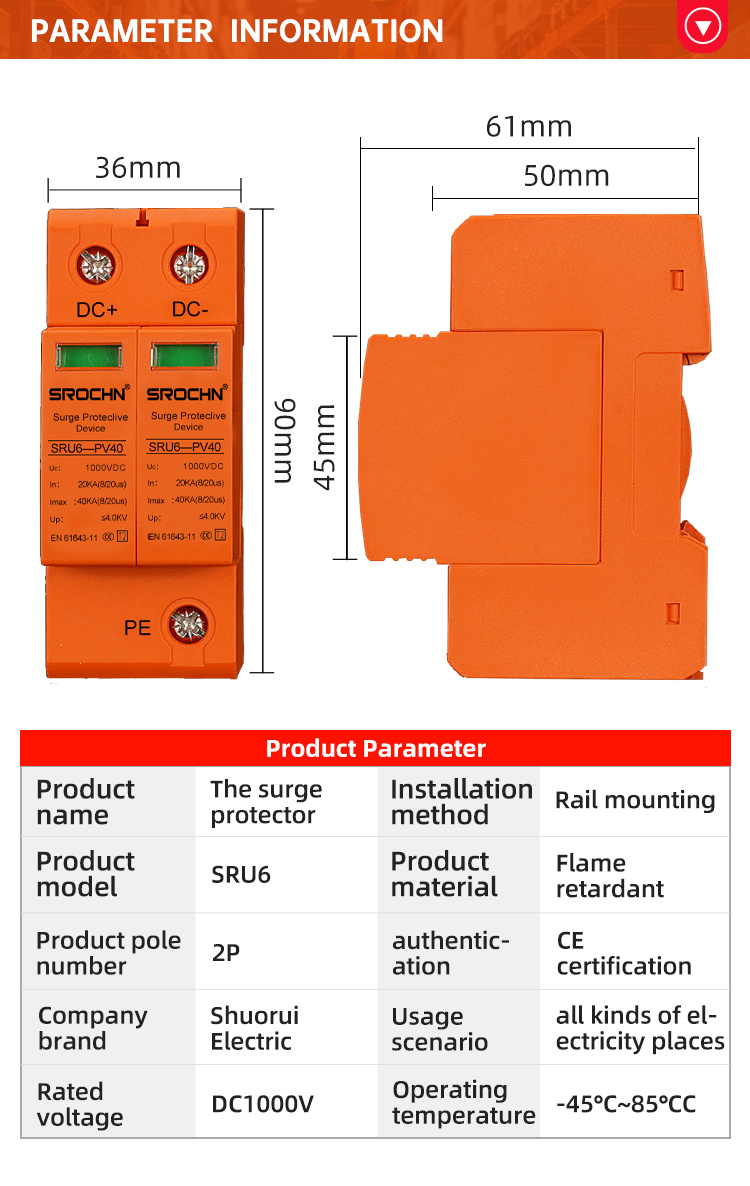

Technical Specifications

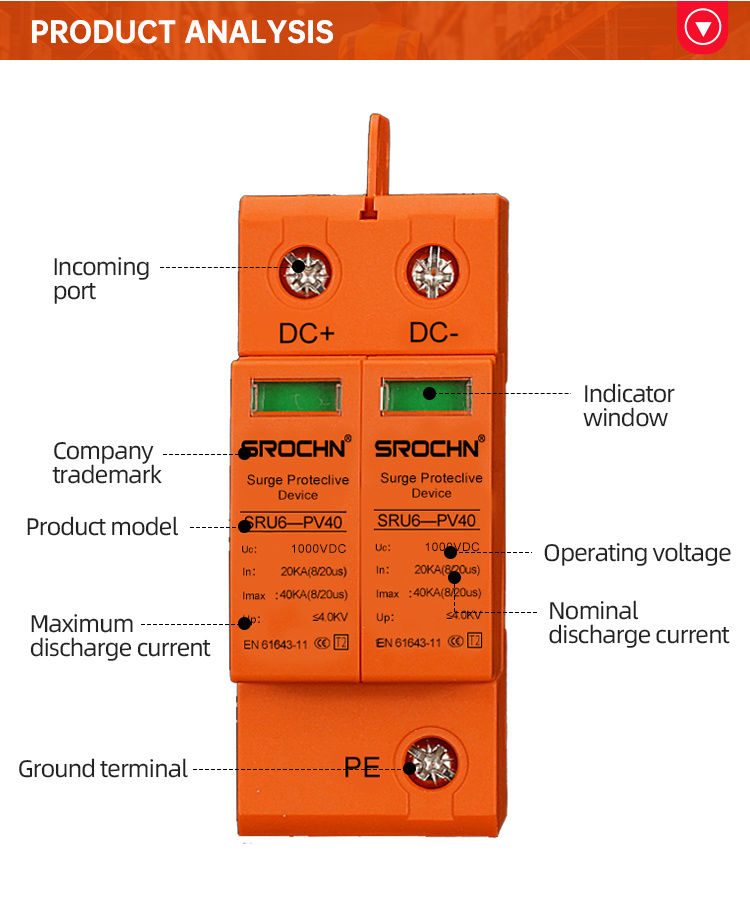

Maximum Discharge Current: 40kA (8/20μs)
Nominal Discharge Current: 20kA (8/20μs)
Protection Level (Up): ≤4.0kV
Rated Voltage: 1000VDC
Protection Level: T2 (Class II)
Number of Poles: 2P
Housing Material: Flame Retardant Plastic (UL94 V0)
Color: Orange
Response Time: <25 nanoseconds
Operating Temperature Range: - 45°C to +85°C
Protection Mode: L+/L/PE
Connection Type: Screw terminal

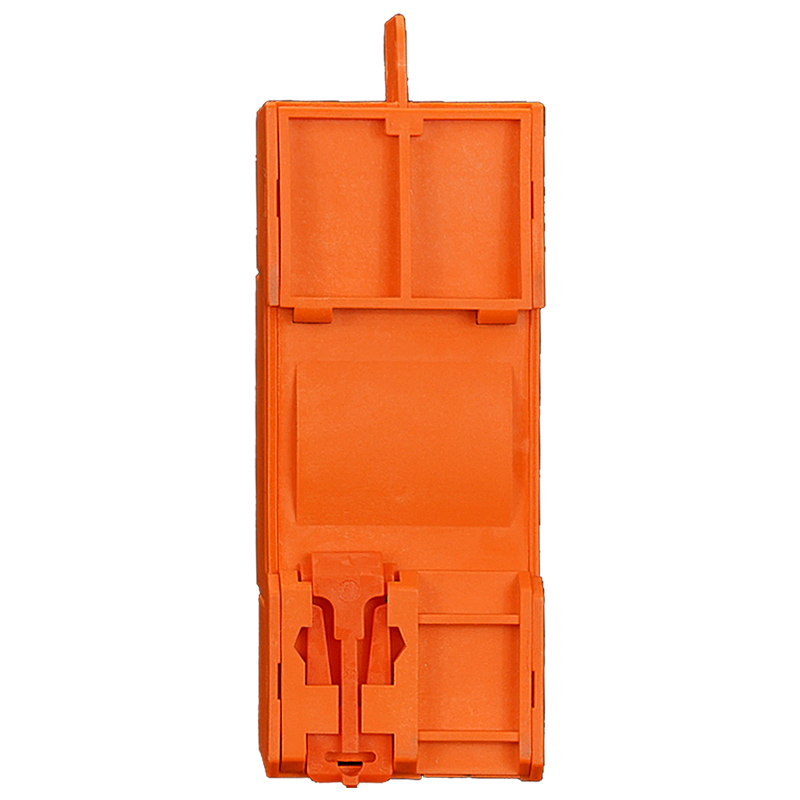

Mounting: DIN Rail (35mm)
Protection Degree: IP20
Standards Compliance: IEC 6164311, EN 6164311, UL 1449
This orange surge protective device combines advanced protection technology with high visibility design, providing comprehensive surge protection for ultrahigh voltage DC systems. Its reliable performance, compact design, and excellent protective characteristics make it an ideal choice for various industrial applications where both protection efficiency and easy maintenance are essential requirements.
