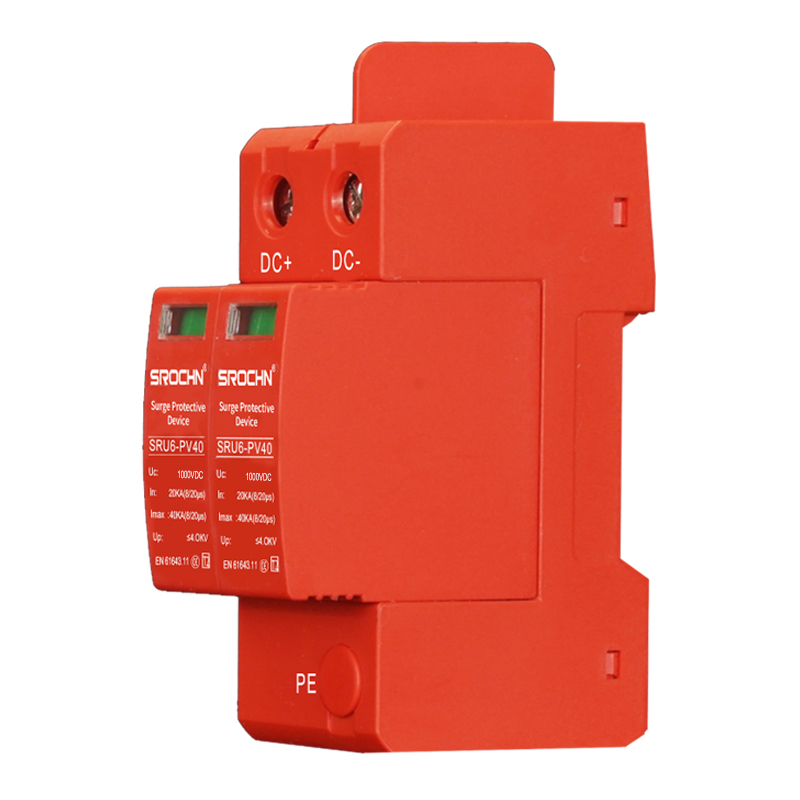

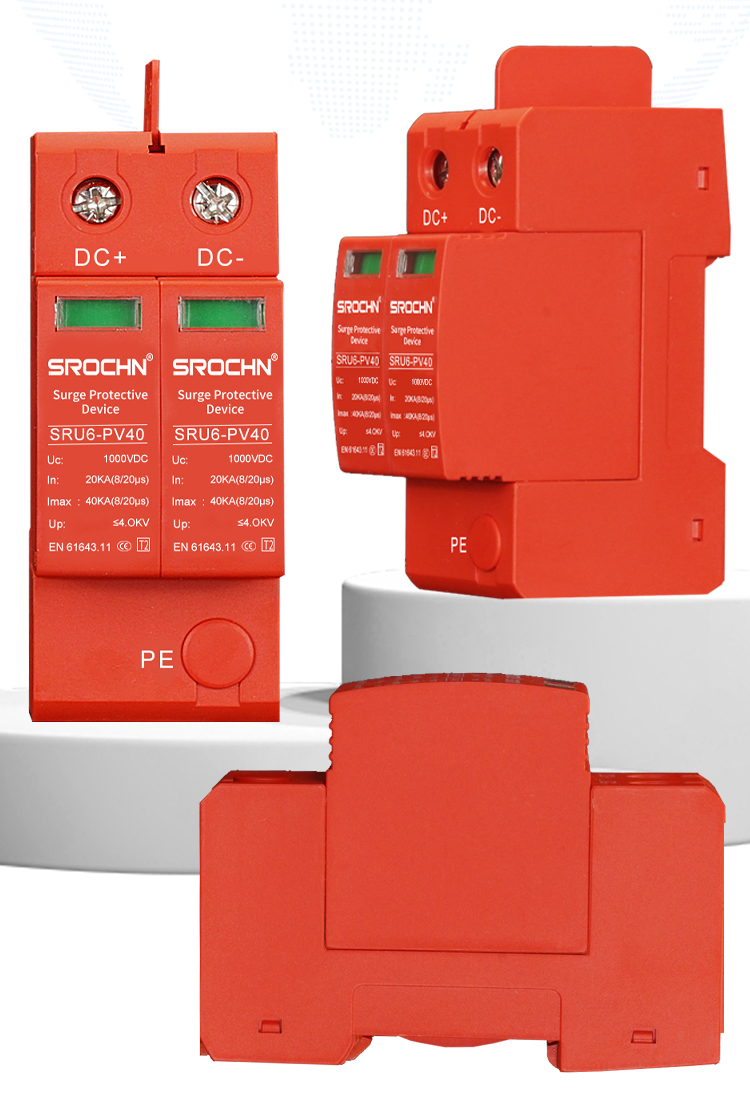

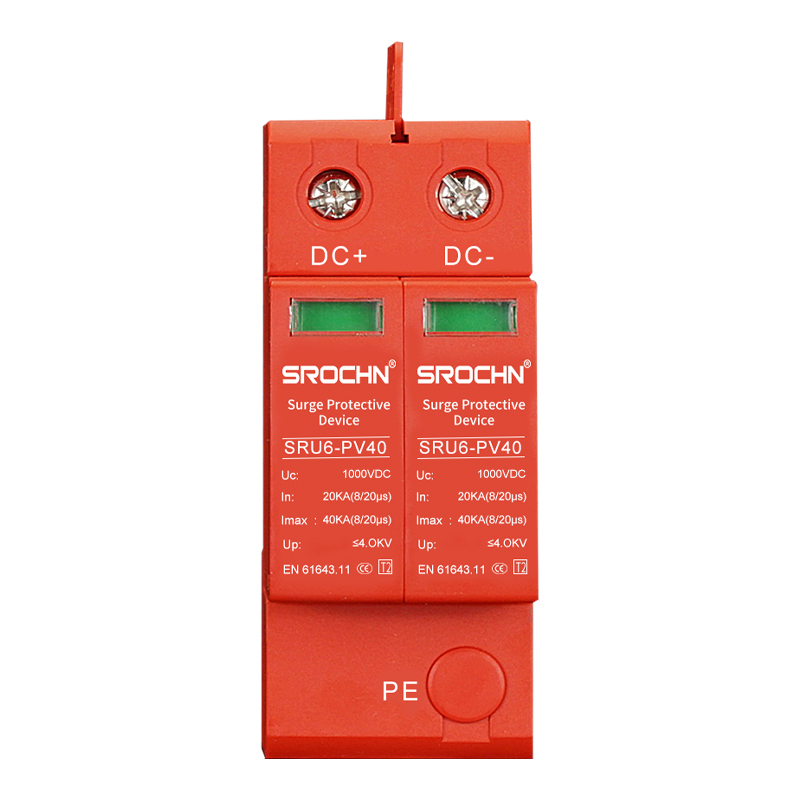

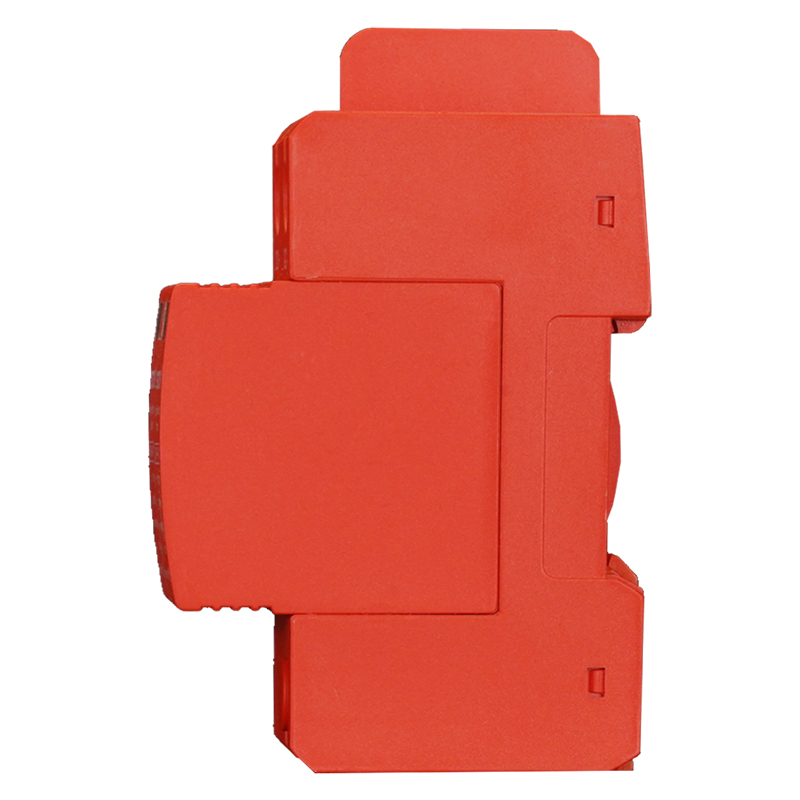

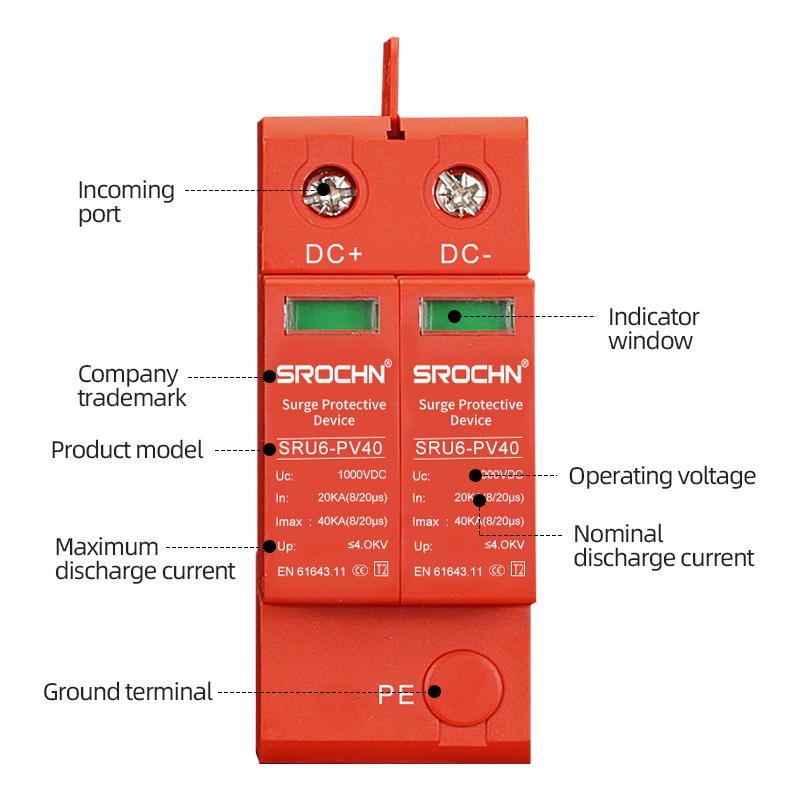

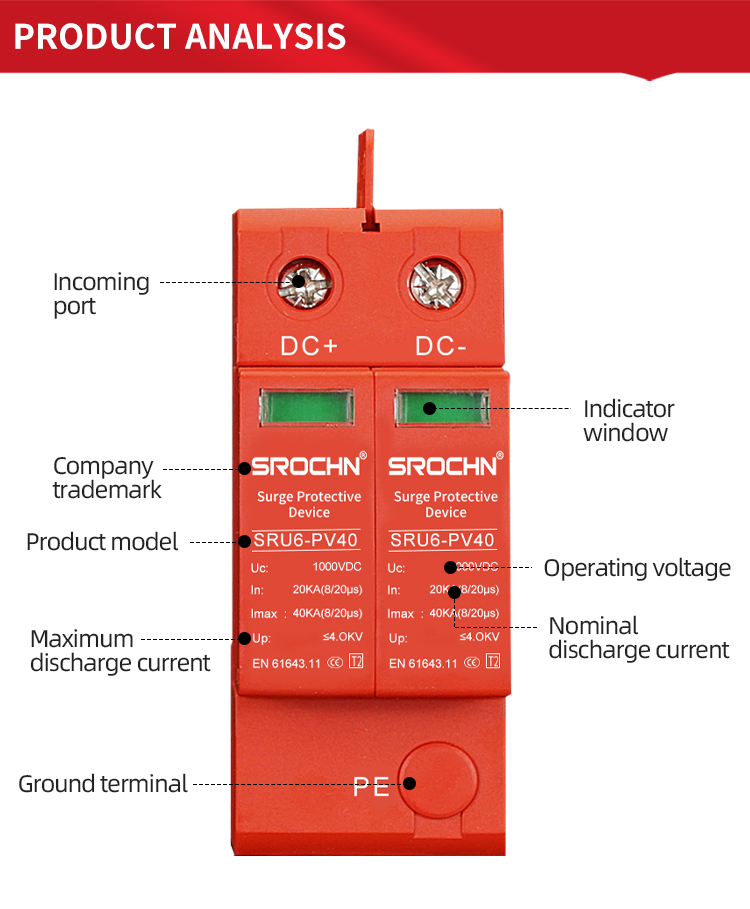

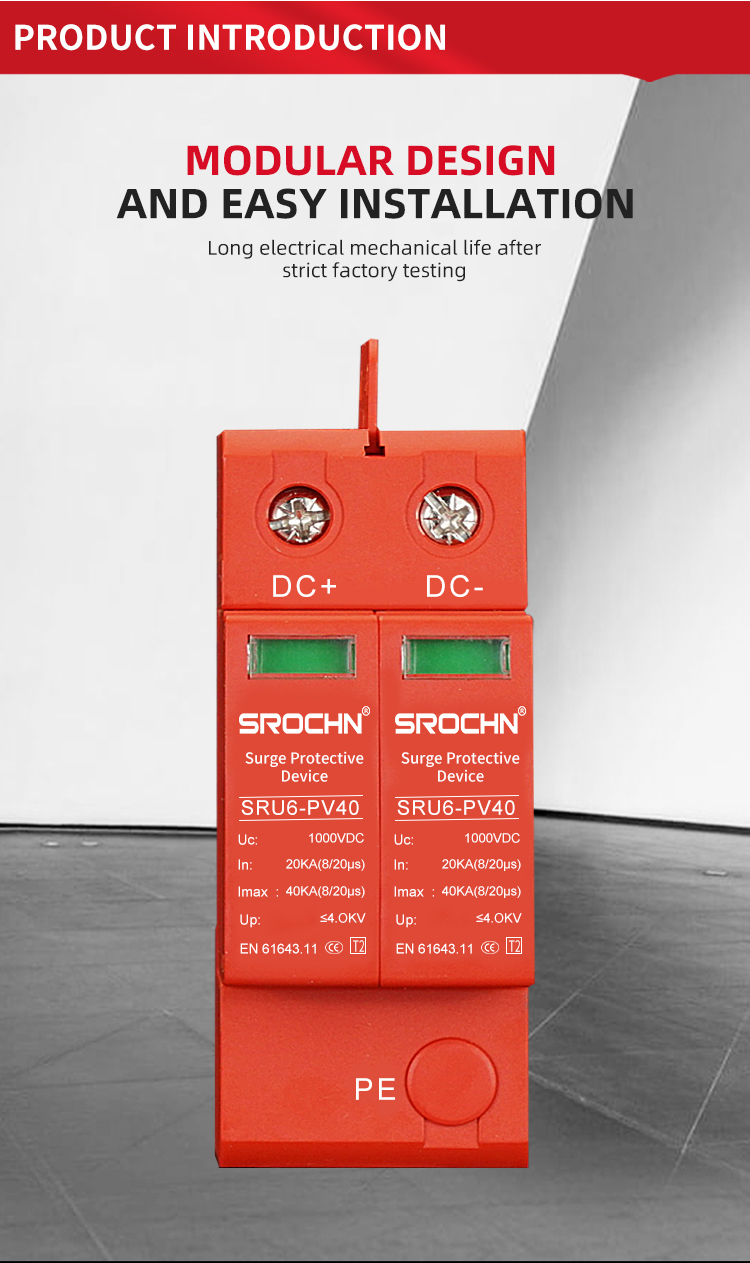

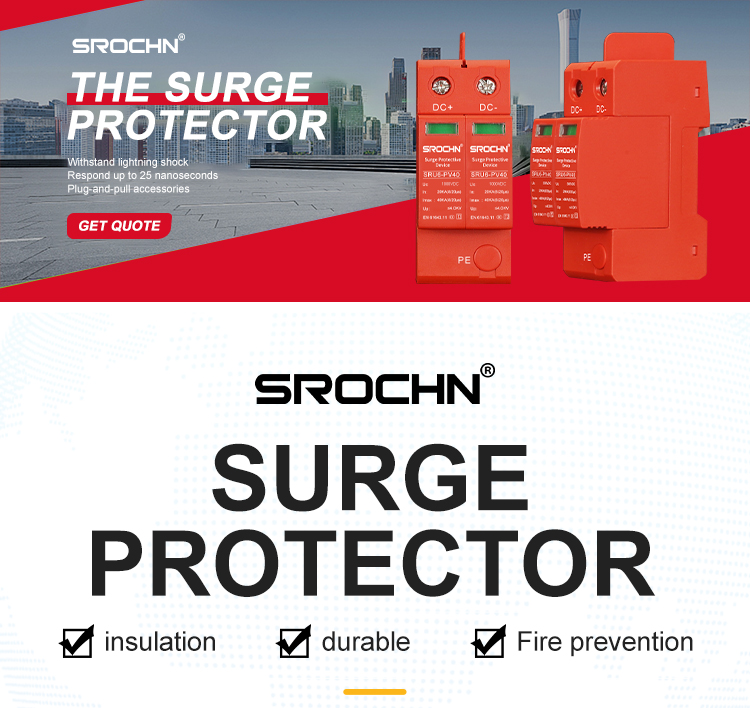

2P 1000VDC T2 40kA Surge Protective Device for Advanced Electronic Protection
Key Features and Advantages
• Ultrahigh voltage protection specifically designed for 1000VDC systems
• 40kA maximum discharge capacity ensures robust surge protection
• Nanosecondlevel response time (<25ns) for immediate voltage clamping
• Advanced thermal management with automatic disconnection system
• Clear visual status indicators for instant operational monitoring
• Spaceefficient design with compact dimensions
• Lightweight construction for easy handling and installation
• Extended operational range (- 45°C to +85°C) for various environments

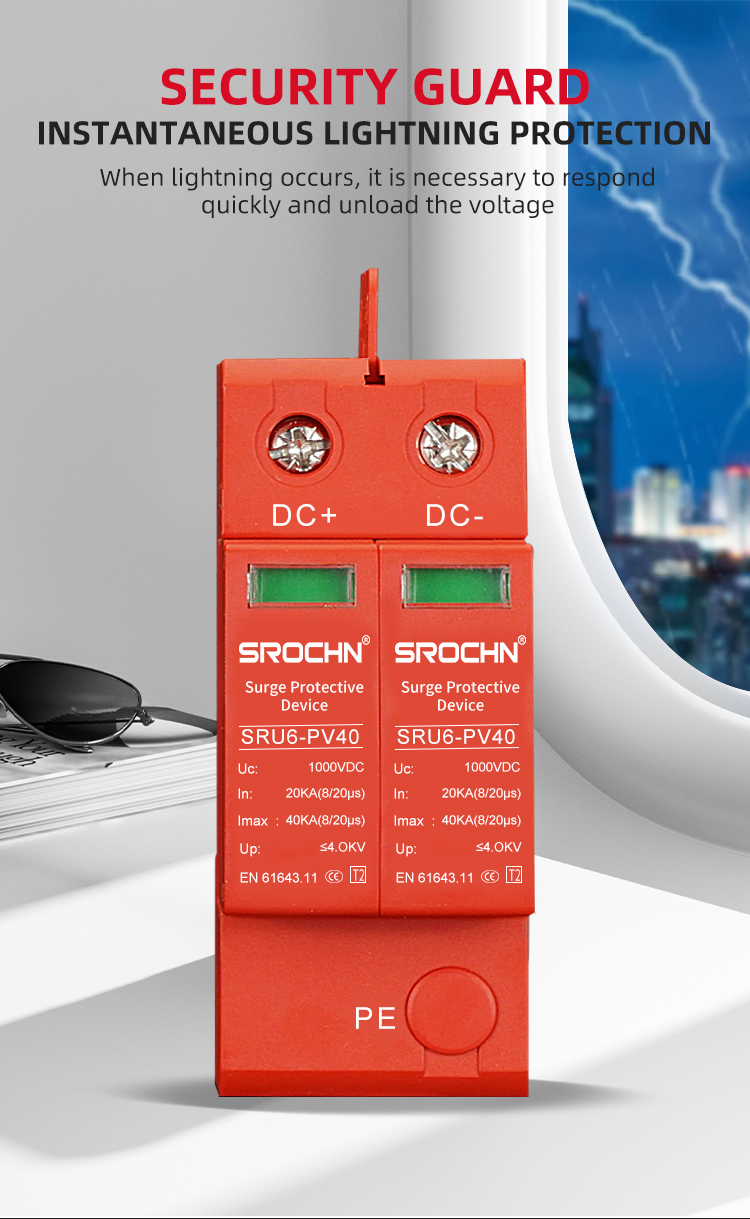

• Dual application suitability for both lightning and electronic equipment protection
• Full compliance with international IEC 6164311 standards
Application Scenarios
The device is engineered for deployment in multiple critical applications:
Industrial power distribution and control systems
Renewable energy generation facilities and solar farms
Data center electronic equipment protection
Telecommunications infrastructure and network systems
Transportation and railway power networks
Building management and security systems
Highvoltage DC power distribution installations
Sensitive electronic device protection in commercial settings

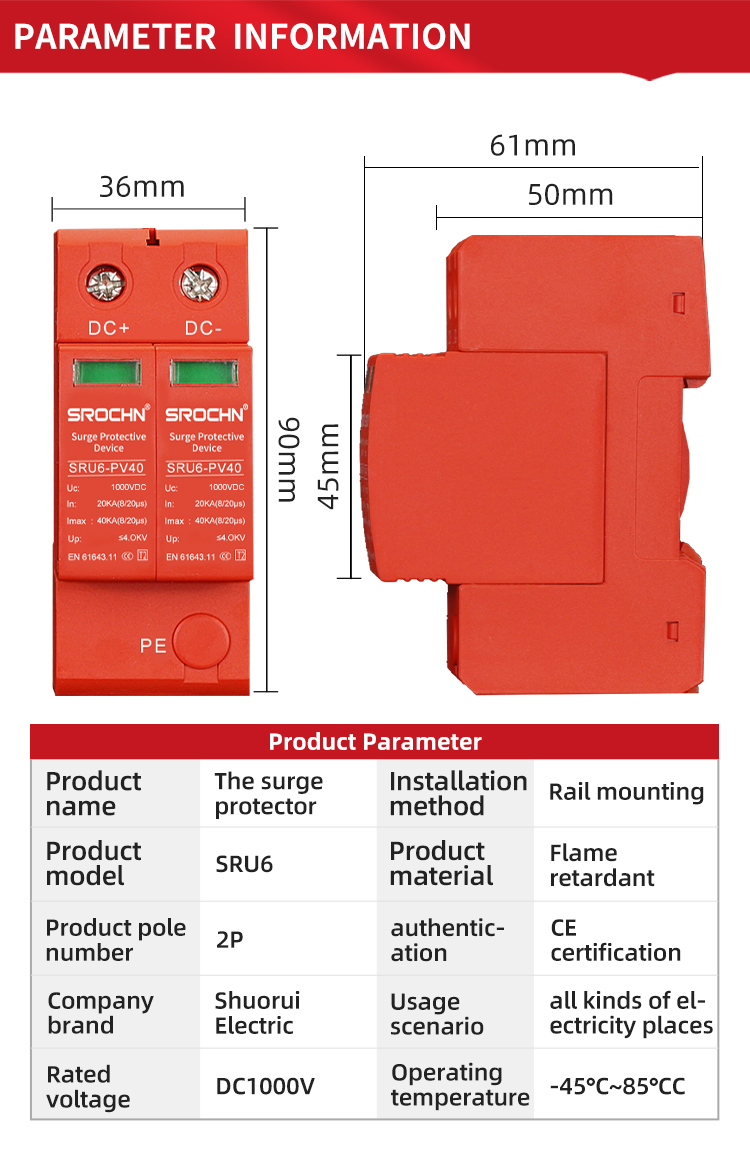

Technical Specifications
Maximum Discharge Current: 40kA (8/20μs )
Nominal Discharge Current: 20kA (8/20μs )
Rated Voltage: 1000VDC
Protection Level: ≤4.0kV
Protection Level: T2 (Class II)
Number of Poles: 2P

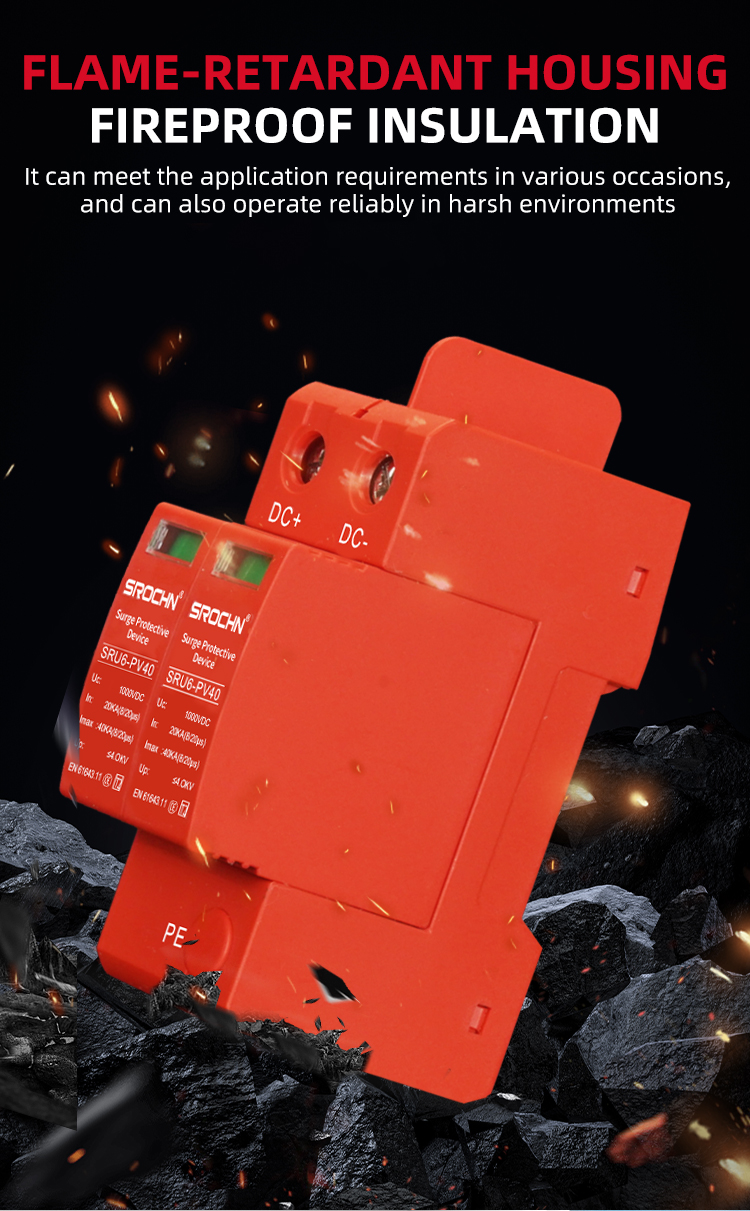

Housing Material: FlameRetardant Plastic (UL94 V0)
Response Time: <25 nanoseconds
Operating Temperature Range: - 45°C to +85°C
Protection Mode: L+/L/PE
Connection Type: Screw terminal

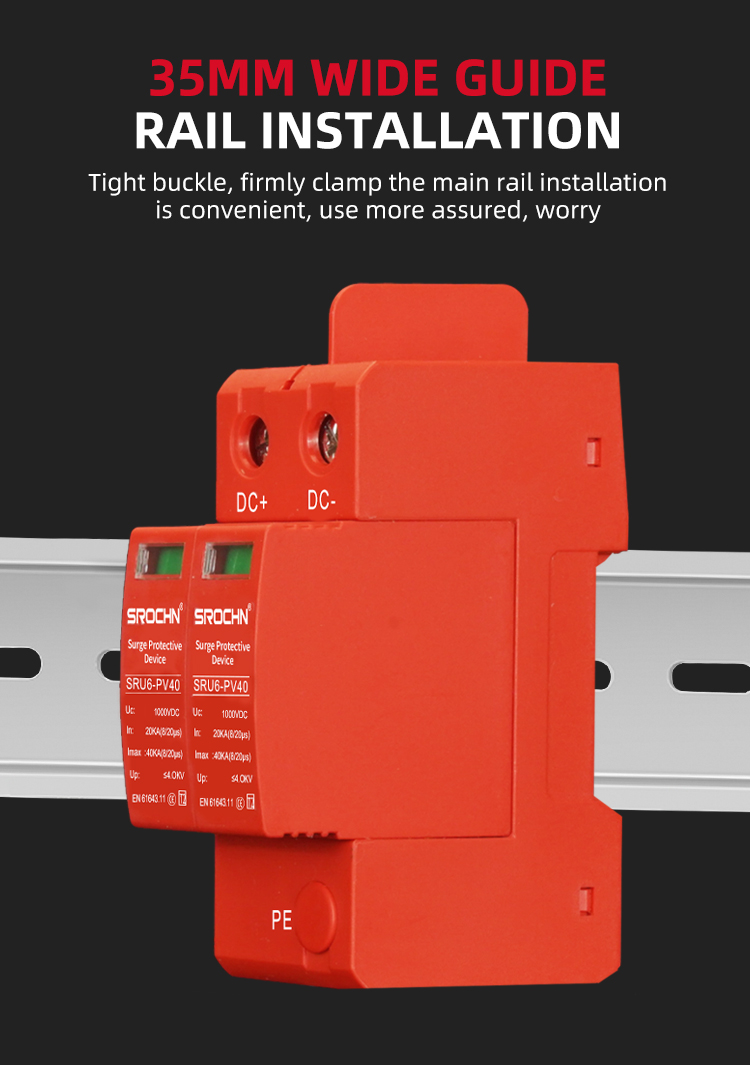

Mounting: 35mm DIN rail
Protection Rating: IP20

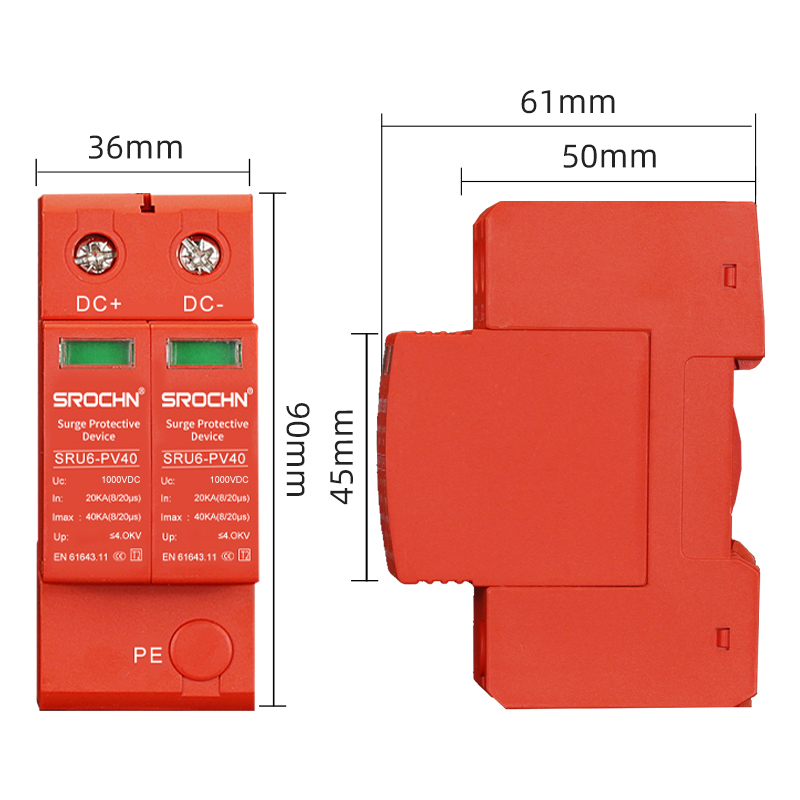

Package Dimensions: 9.5×7.5×7 cm
Unit Weight: 0.218 kg
Compliance Standards: IEC 6164311, EN 6164311
This surge protective device offers advanced protection solutions for highvoltage DC systems, combining technical excellence with practical design features. Its compact form factor and lightweight construction make it particularly suitable for modern electronic applications where space optimization is crucial. The device meets international safety standards and provides reliable protection against electrical surges, ensuring system integrity and equipment safety in various operational environments. The combination of high performance characteristics and physical practicality makes this SPD an optimal choice for both lightning protection and electronic equipment applications in demanding highvoltage DC systems.
