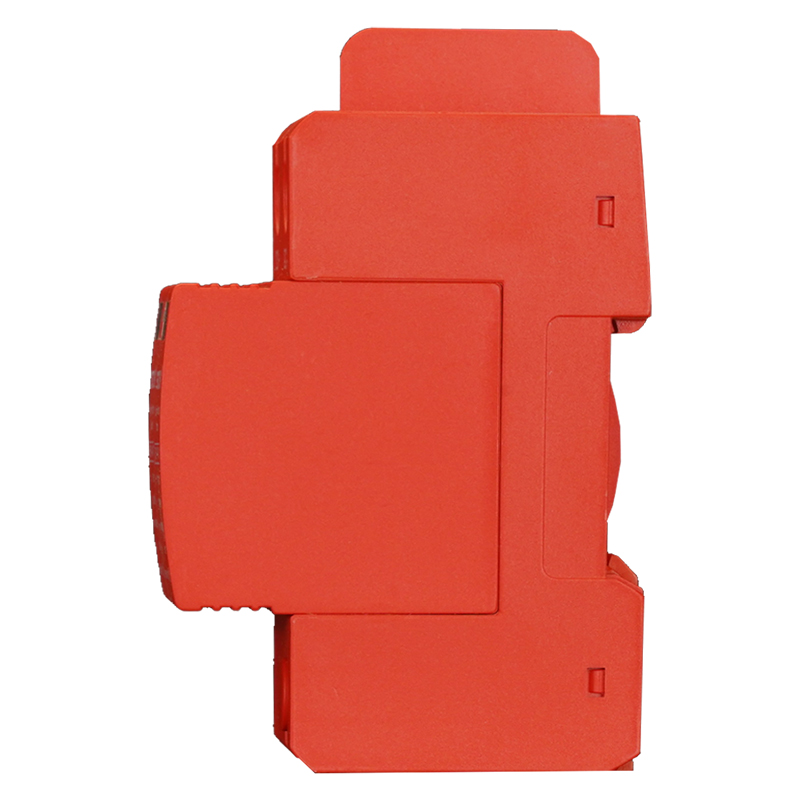

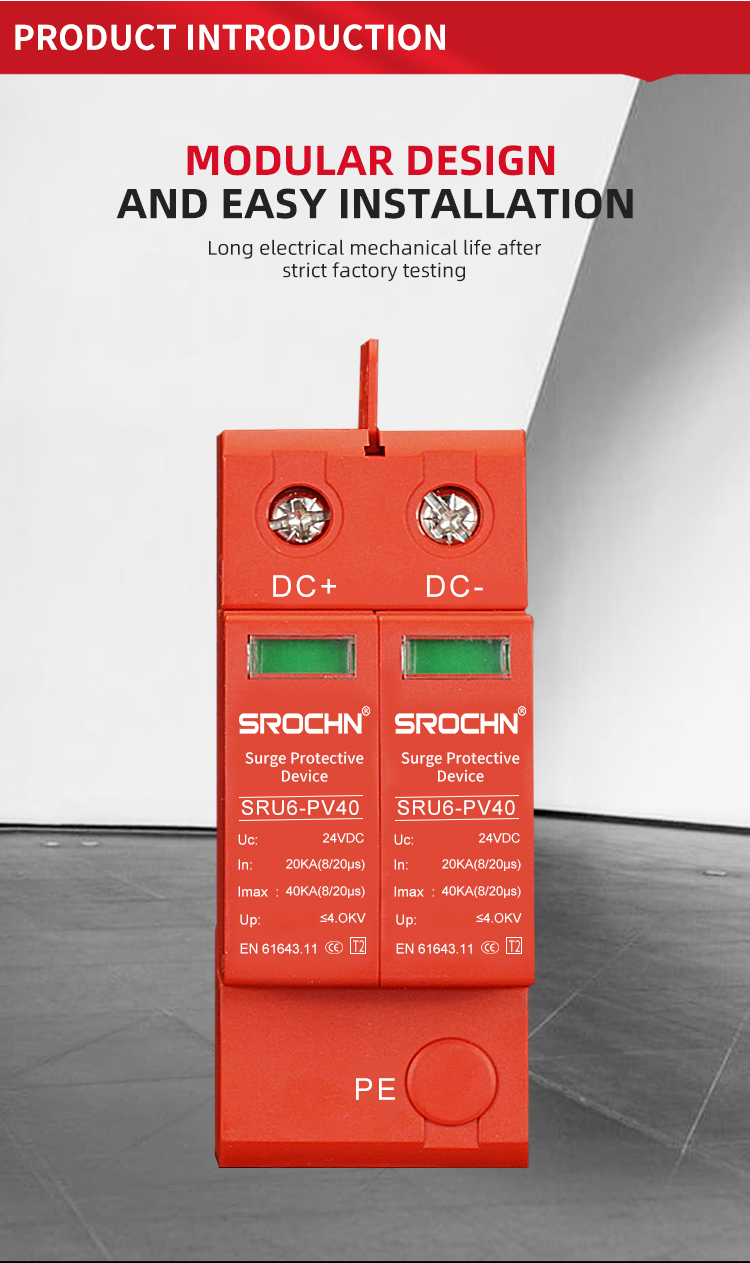

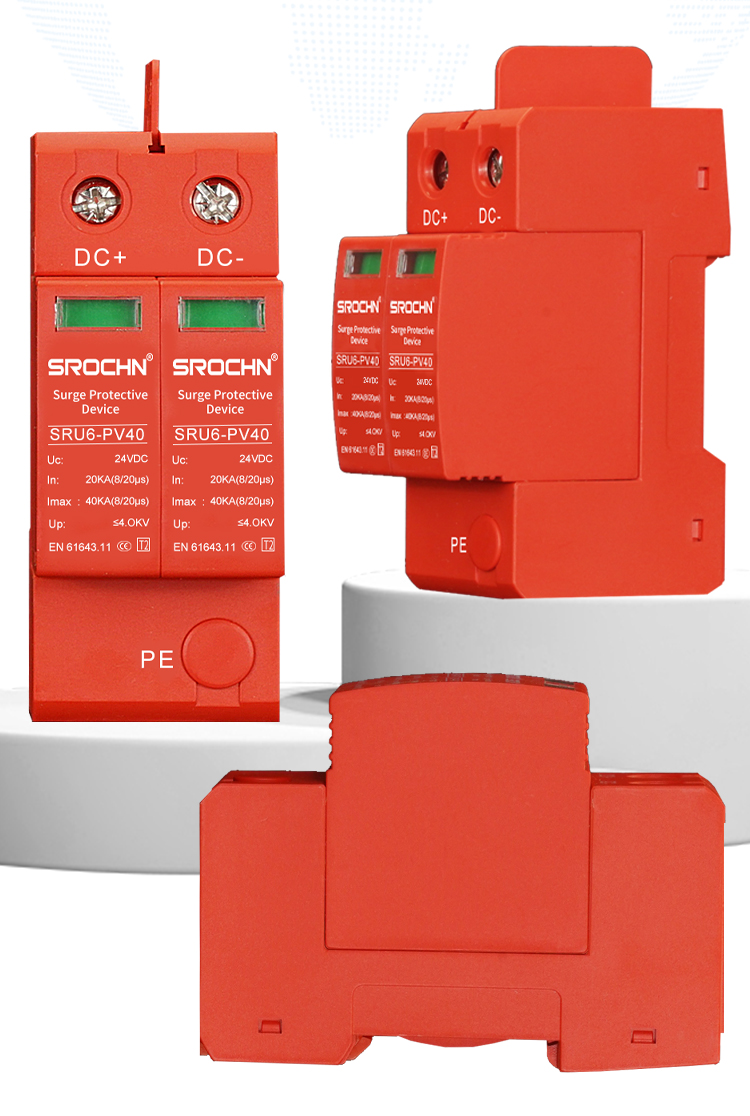

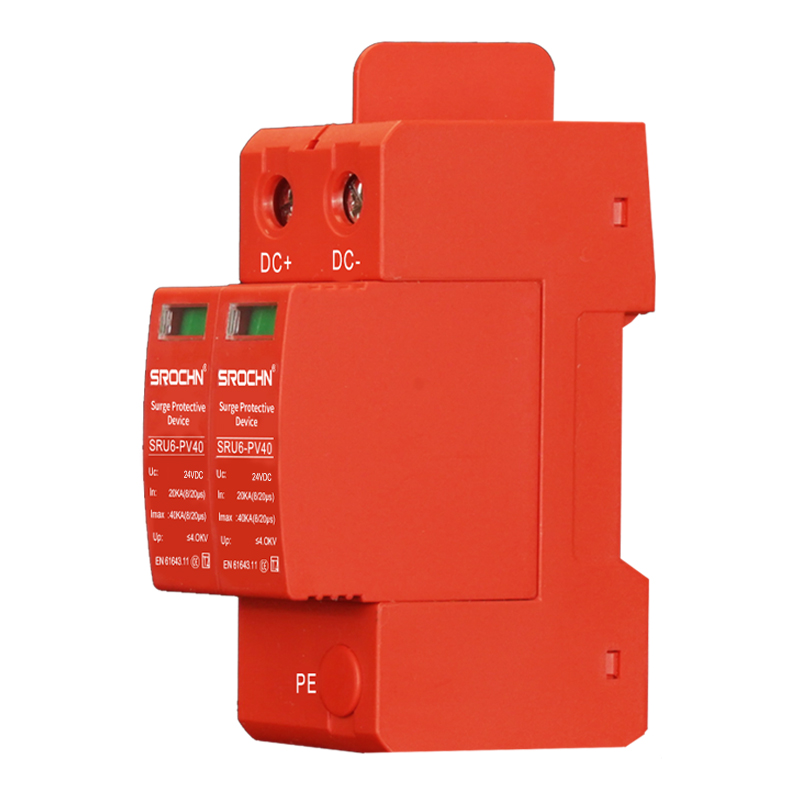

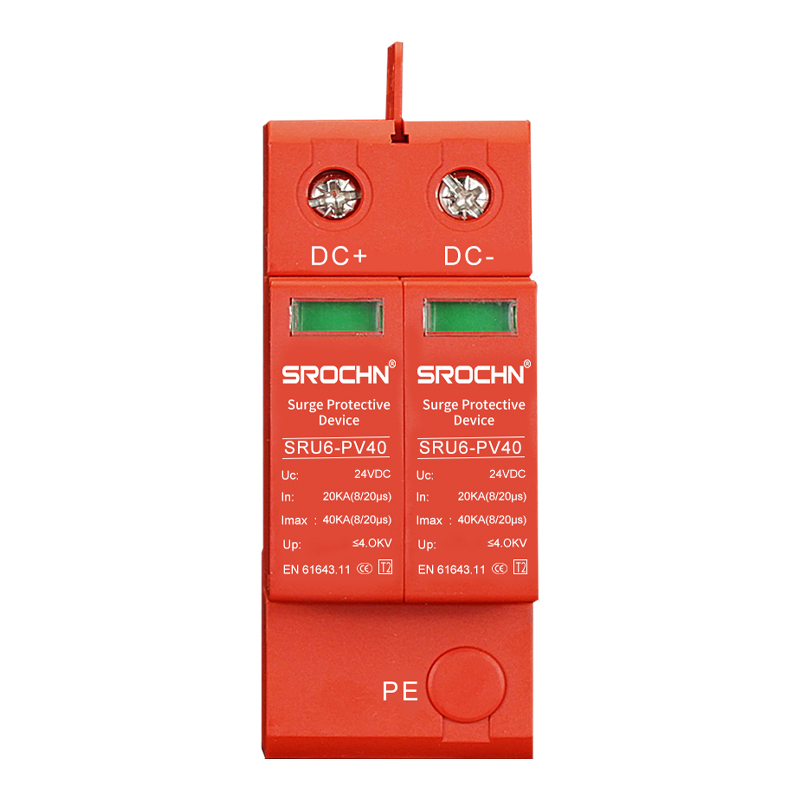

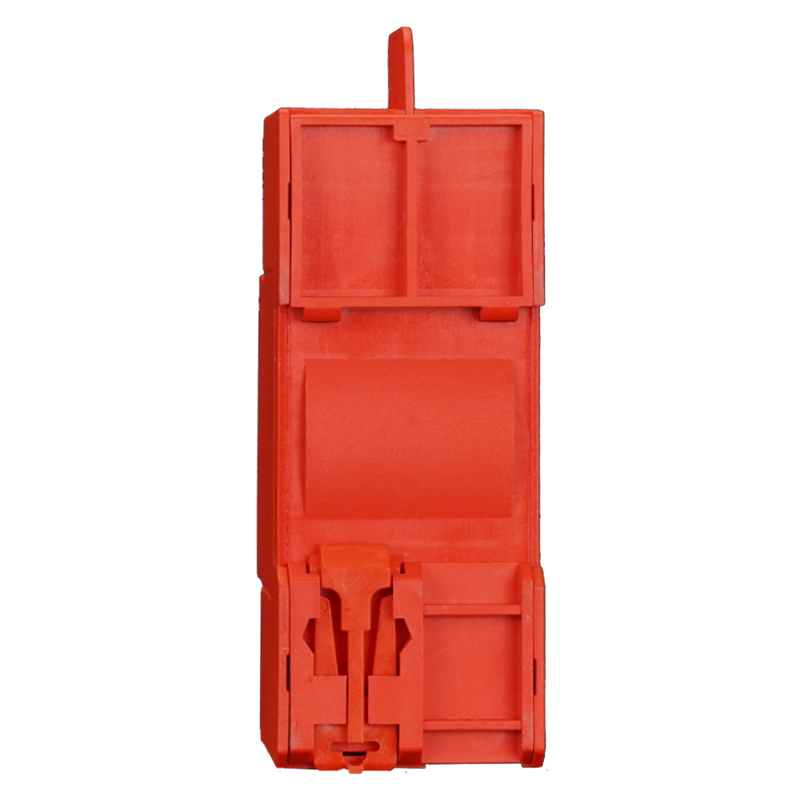

2P 24VDC T2 Surge Protective Device for Low Voltage Systems
Key Features and Advantages
• Low voltage DC protection specifically designed for 24VDC systems
• 40kA maximum discharge current capacity for effective surge protection

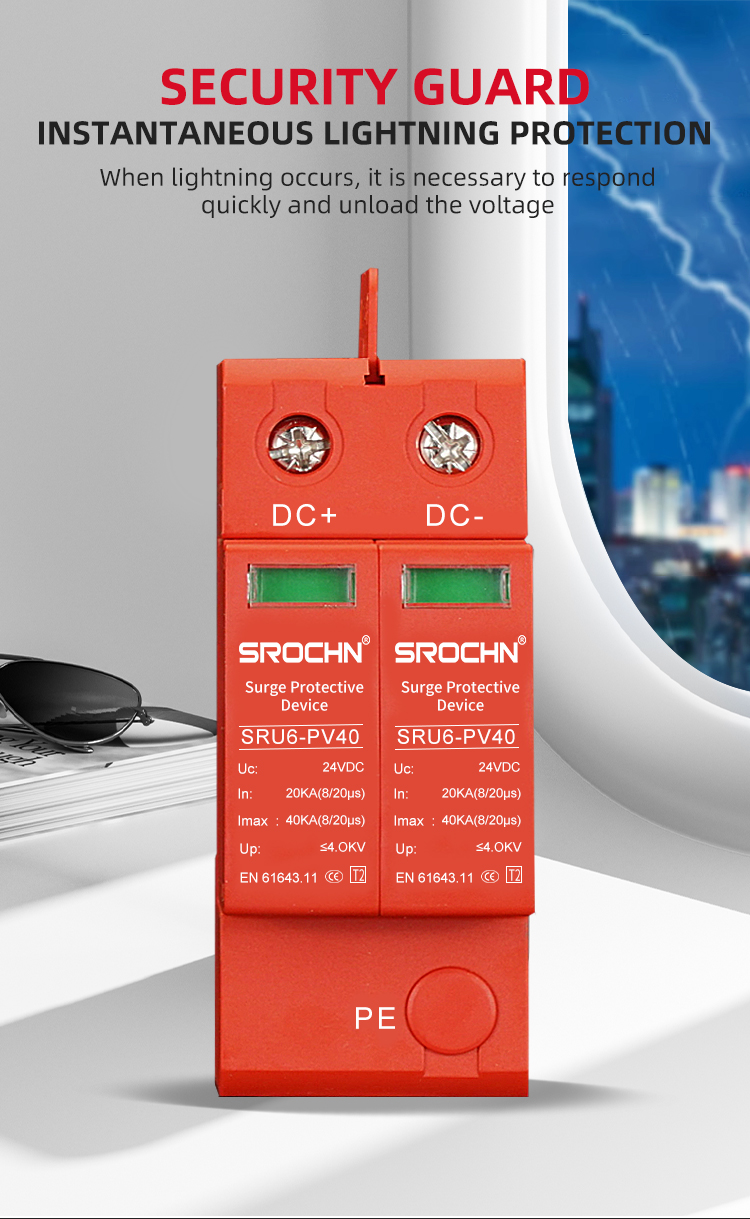

• Fast response time under 25 nanoseconds for optimal voltage clamping
• Integrated thermal protection with automatic disconnection feature

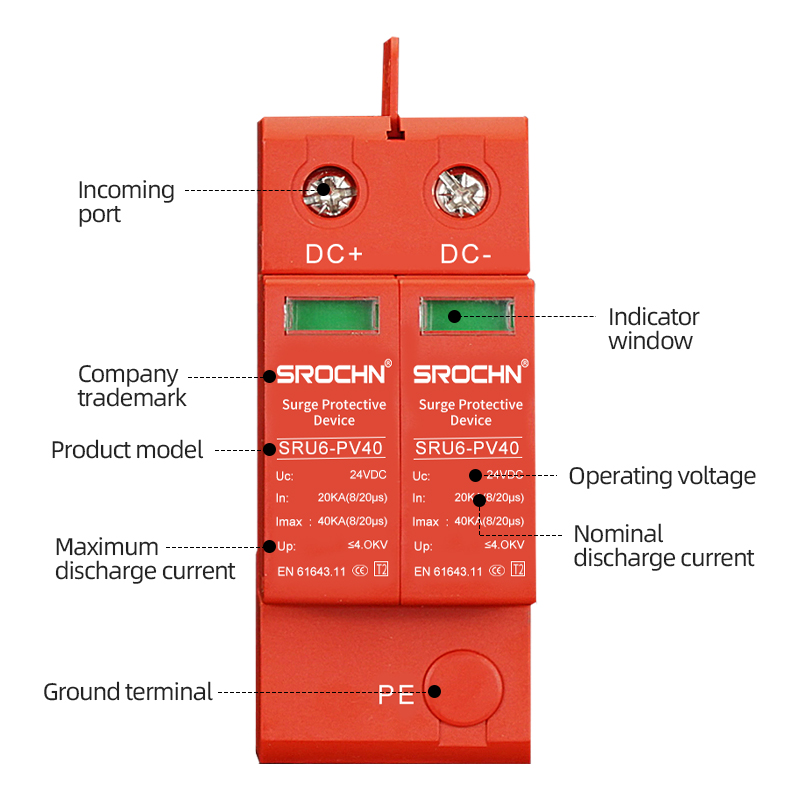

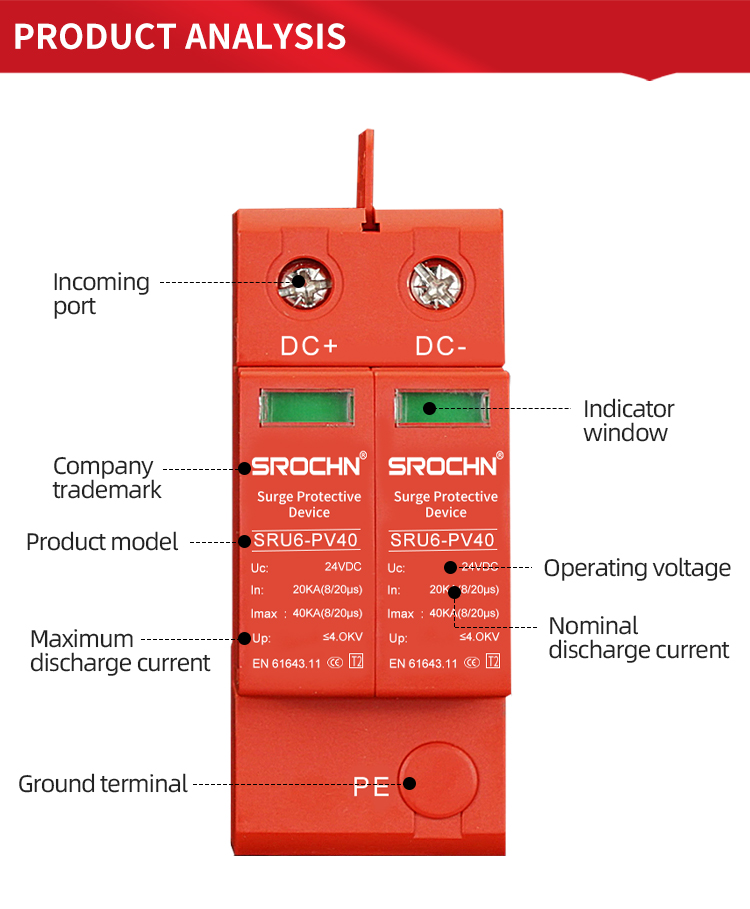

• Clear visual status indicators for operational monitoring
• Simplified DIN rail mounting for easy installation
• Wide operating temperature range from - 45°C to +85°C
• Full compliance with IEC 6164311 international standards

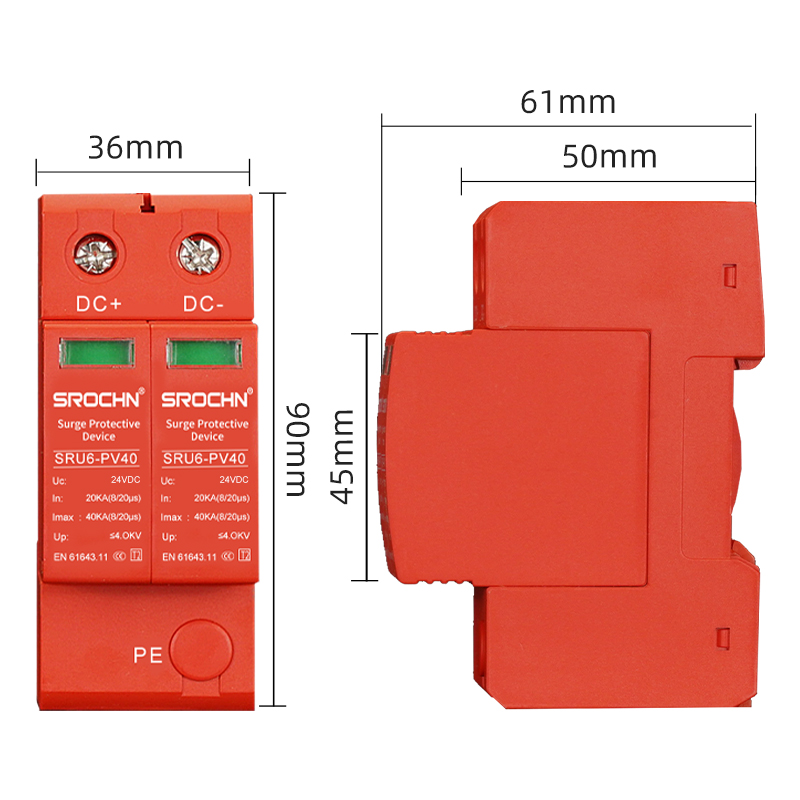

• Compact design suitable for spaceconstrained installations
Application Scenarios
The device is suitable for deployment in various applications including:
Industrial control and automation systems
Security and surveillance equipment
Telecommunications infrastructure
Renewable energy applications
Transportation signaling systems
Building management systems
Low voltage DC power distribution networks
Electronic equipment protection in sensitive environments

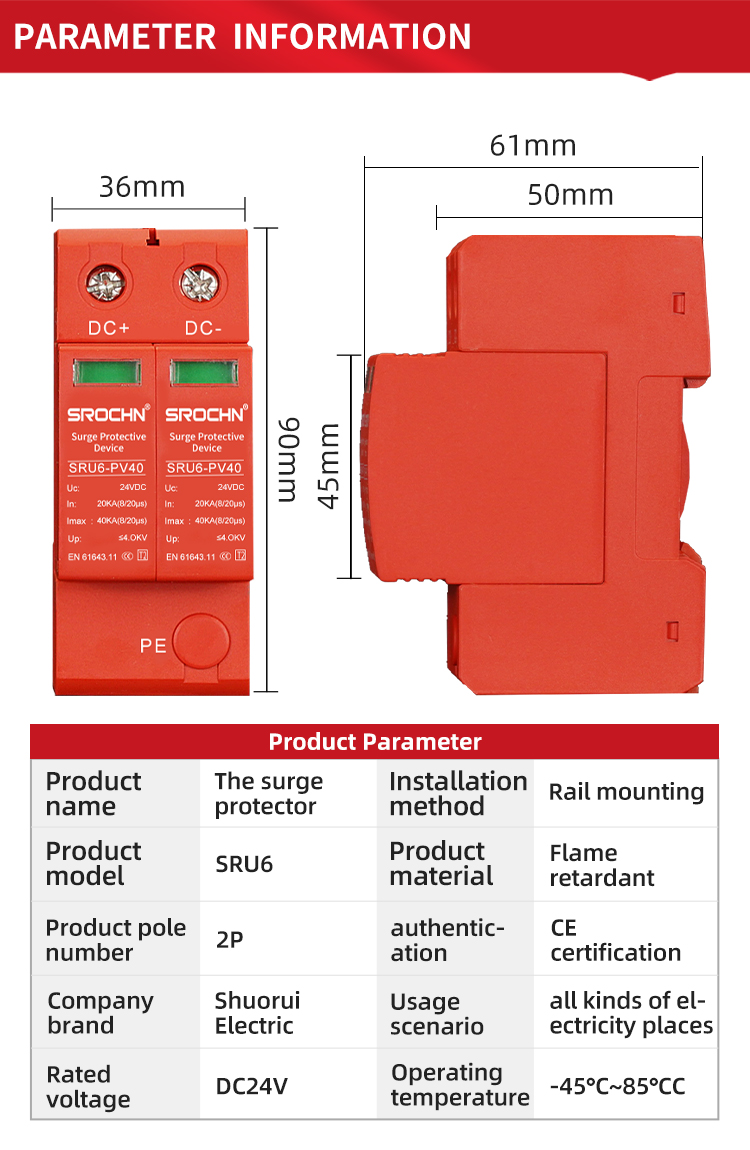

Technical Specifications
Maximum Discharge Current: 40kA (8/20μs)
Nominal Discharge Current: 20kA (8/20μs)
Rated Voltage: 24VDC
Protection Level: T2
Protection Level: ≤4.0kV
Number of Poles: 2P

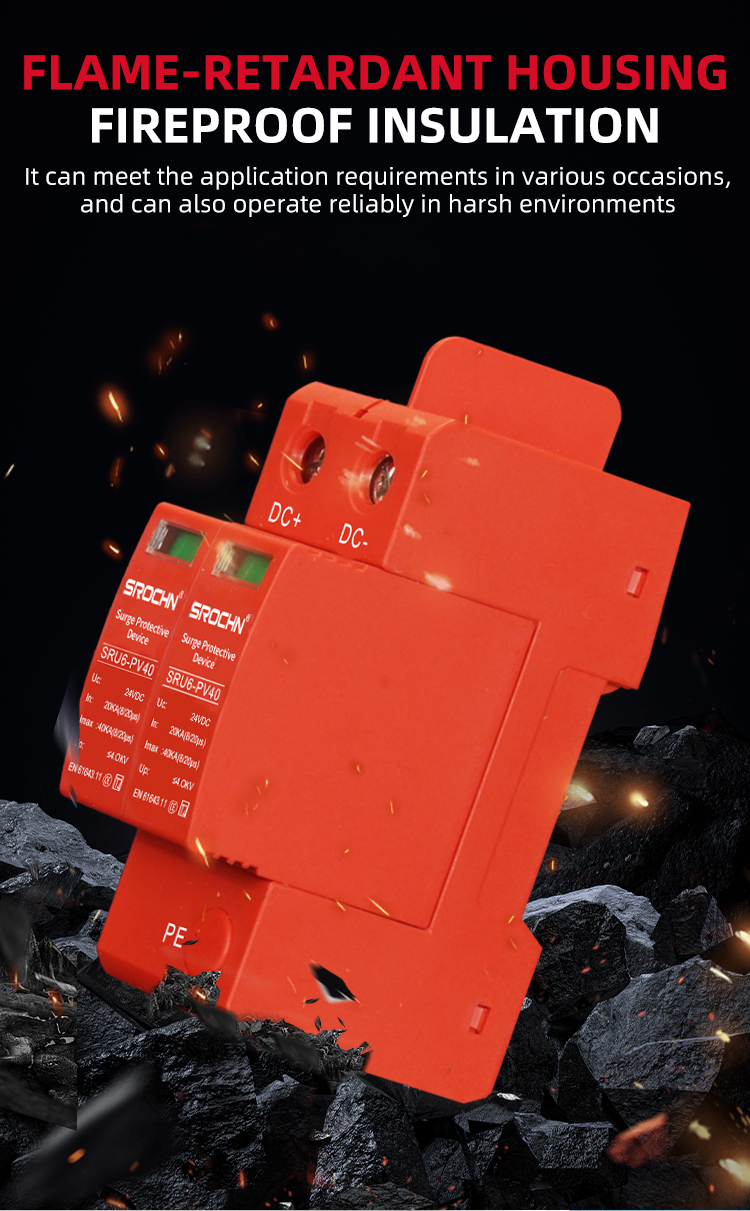

Housing Material: FlameRetardant Plastic (UL94 V0)
Response Time: <25 nanoseconds
Operating Temperature Range: - 45°C to +85°C
Protection Mode: L+/L/PE
Connection Type: Screw terminal

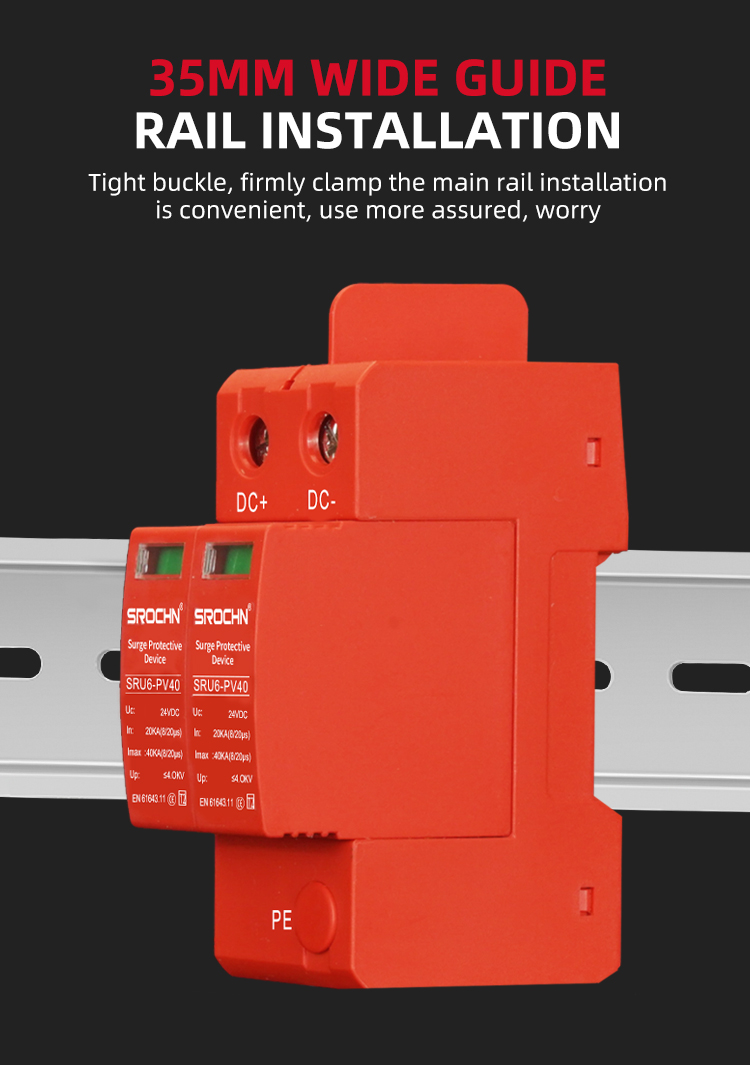

Mounting: 35mm DIN rail
Protection Rating: IP20
Compliance Standards: IEC 6164311, EN 6164311
This surge protective device offers reliable performance and comprehensive protection for low voltage DC systems. Its compact design and advanced features ensure equipment safety and system reliability across various industrial applications. The device meets international standards for surge protective devices and provides effective protection against electrical surges and transient overvoltages in low voltage environments, making it an ideal solution for sensitive electronic equipment protection.
