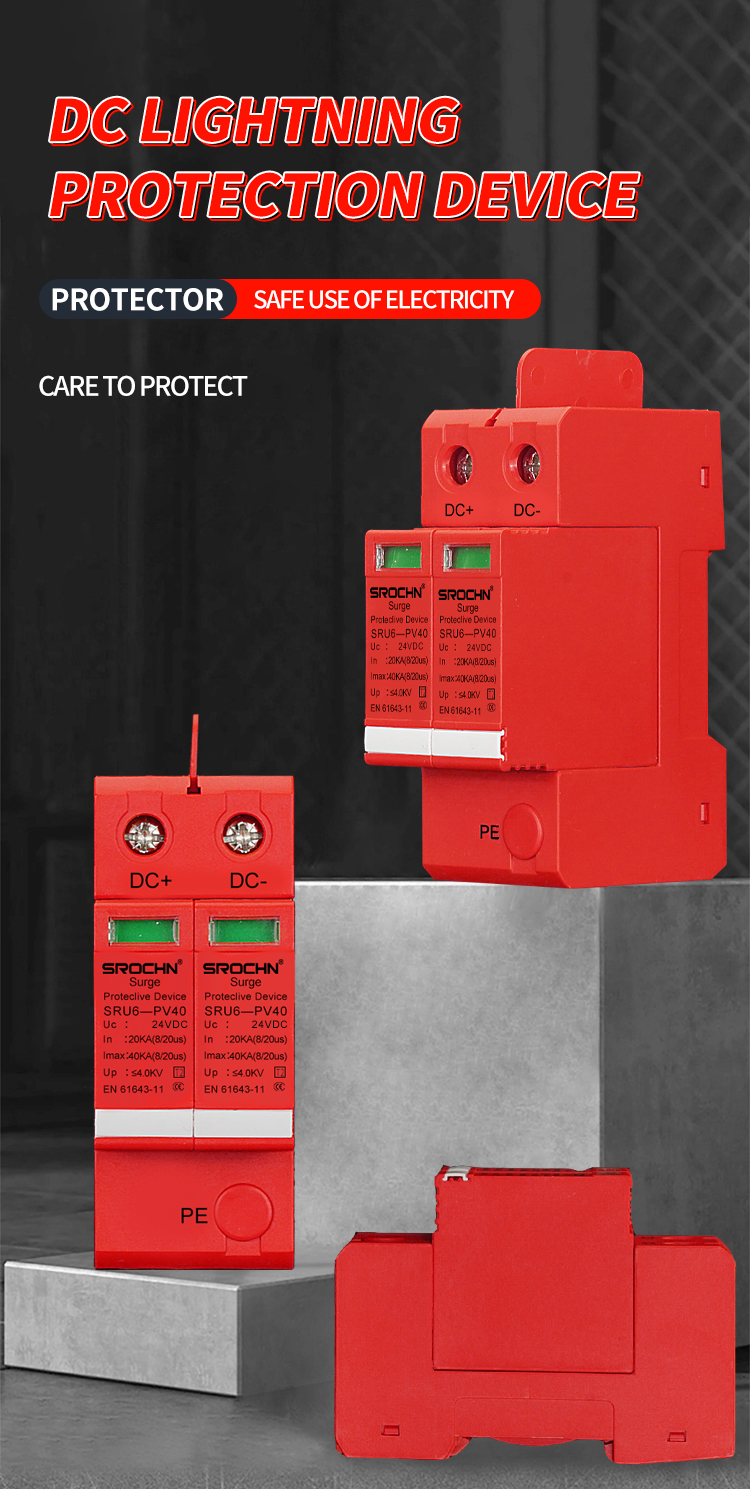

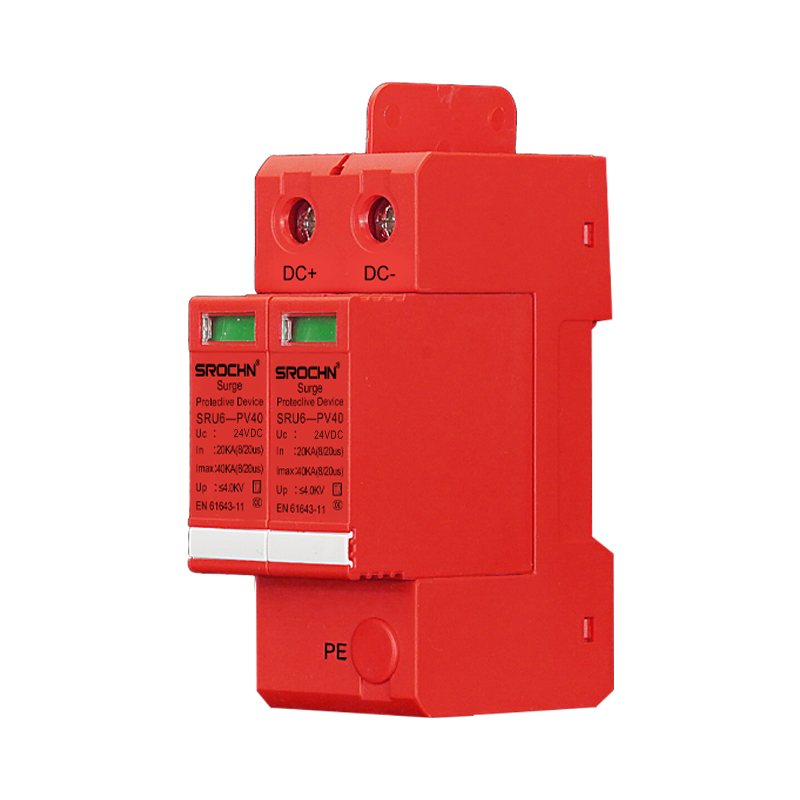

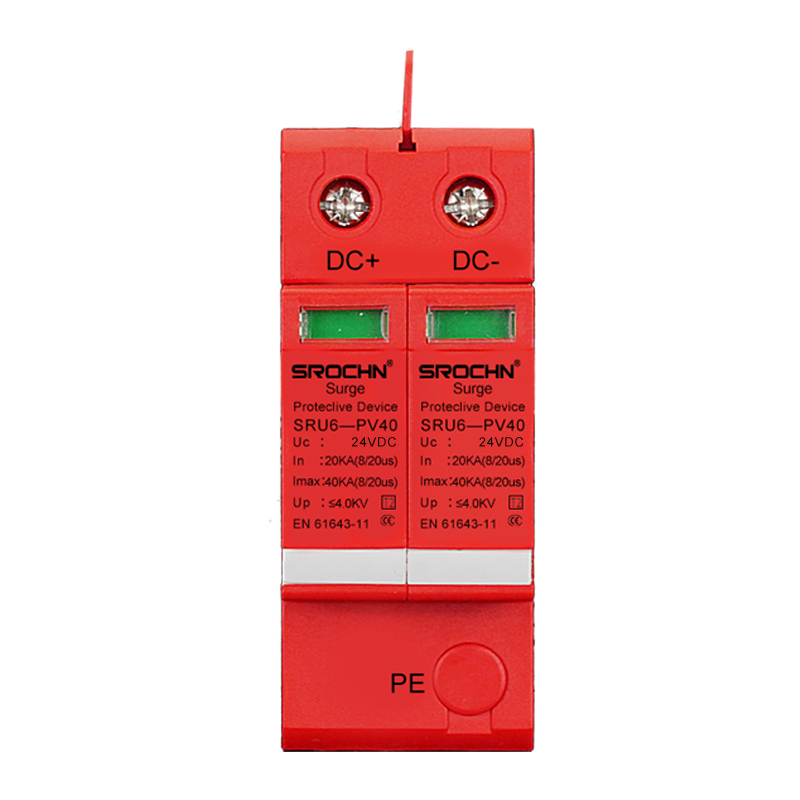

2P 24VDC T2 Surge Protective Device with 40kA Maximum Discharge Current
Key Features and Advantages
• Low voltage DC protection specifically designed for 24VDC systems
• 40kA maximum discharge current capacity provides effective surge protection
• Twopole configuration ensures reliable circuit protection
• Fast response time under 25 nanoseconds for optimal voltage clamping
• Integrated thermal protection with automatic disconnection mechanism

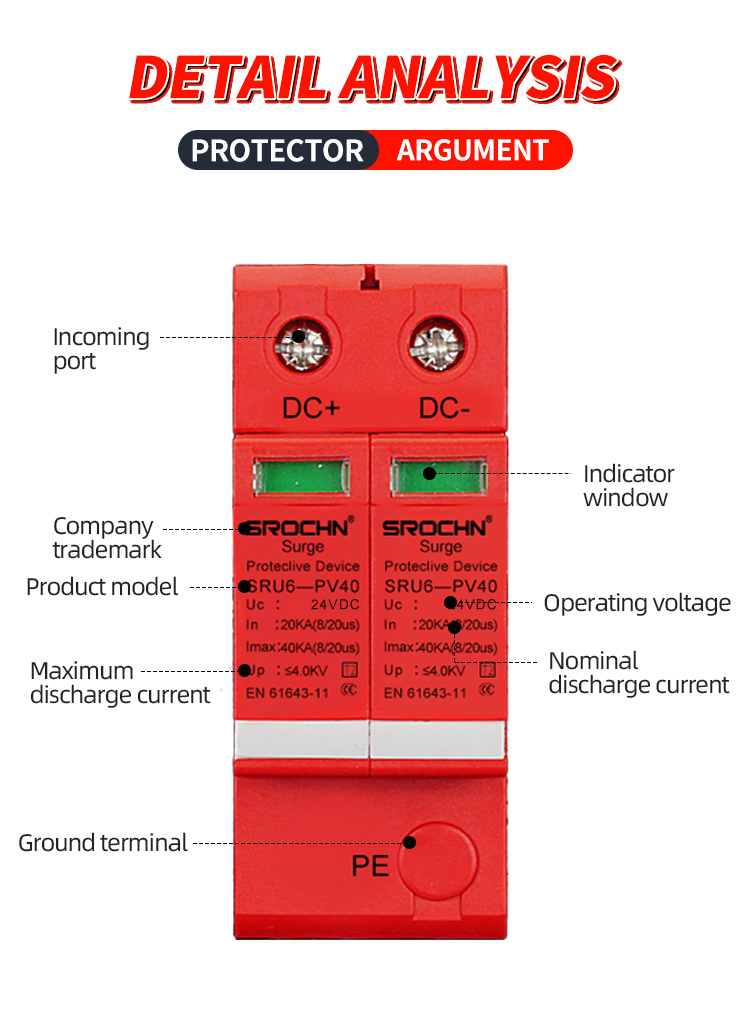

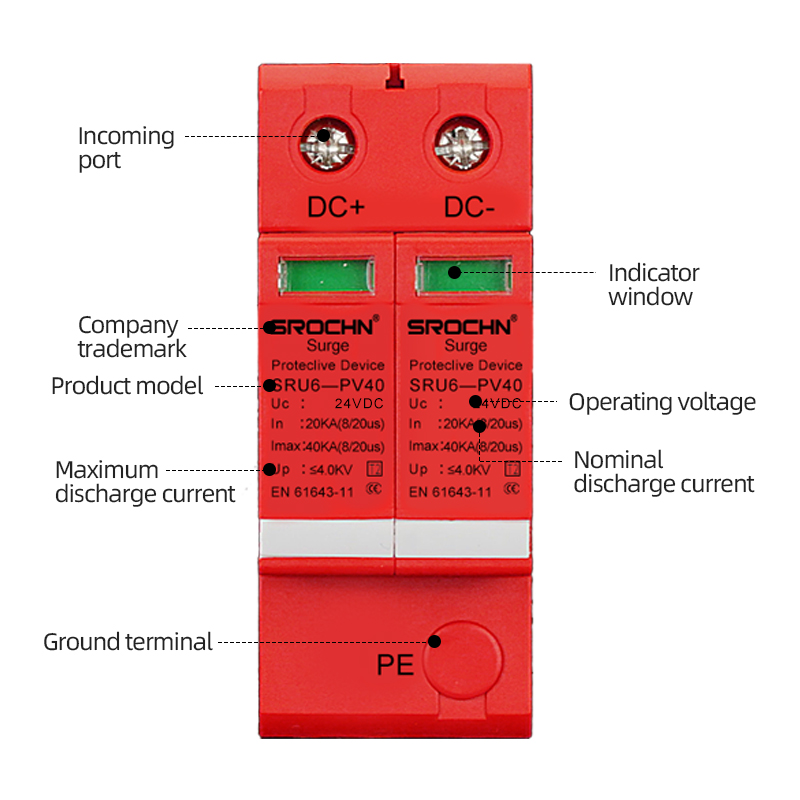

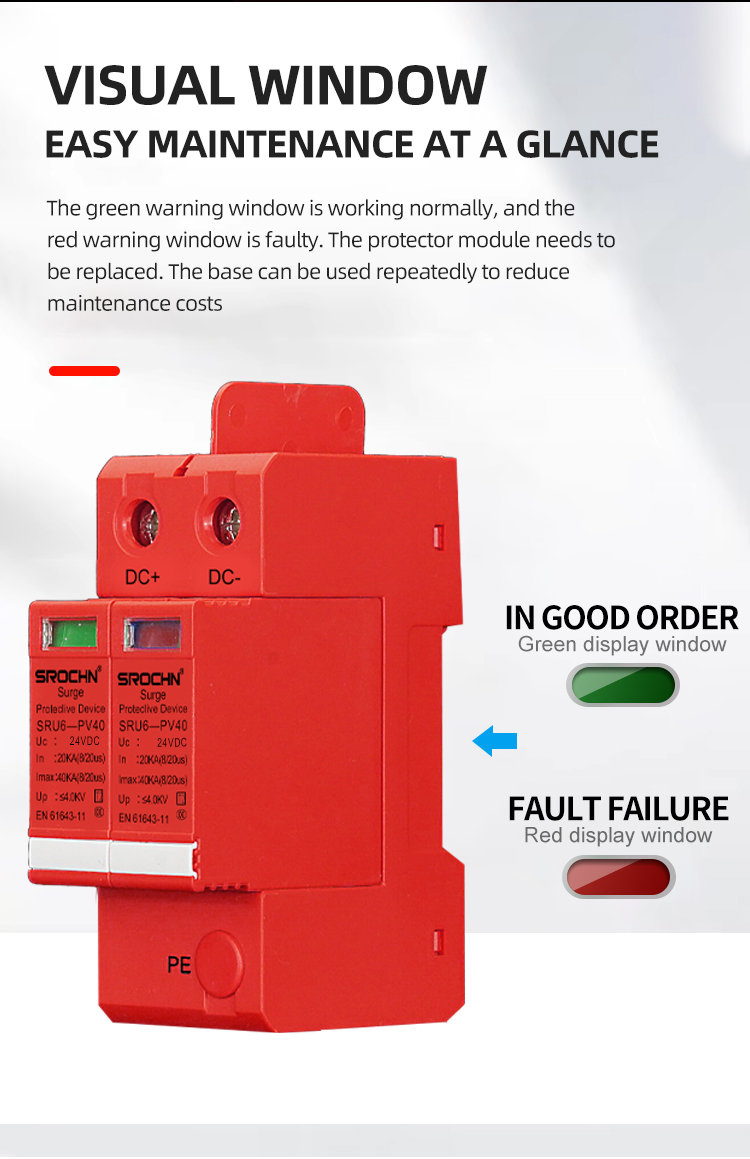

• Clear visual status indicators for operational monitoring

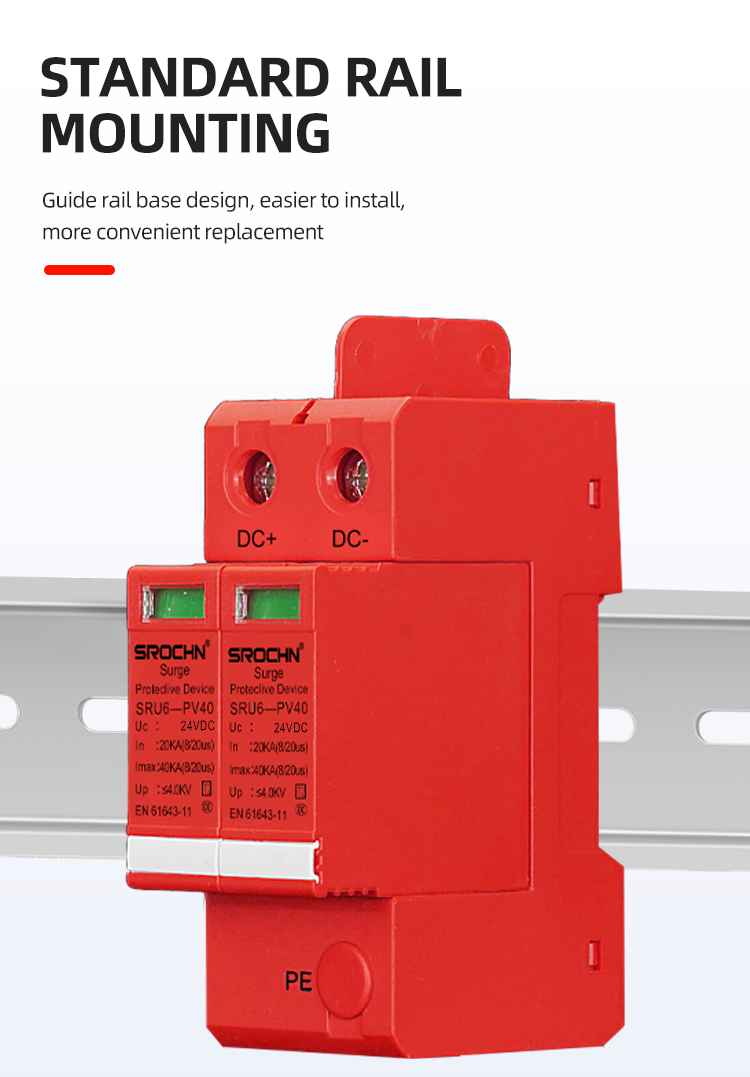

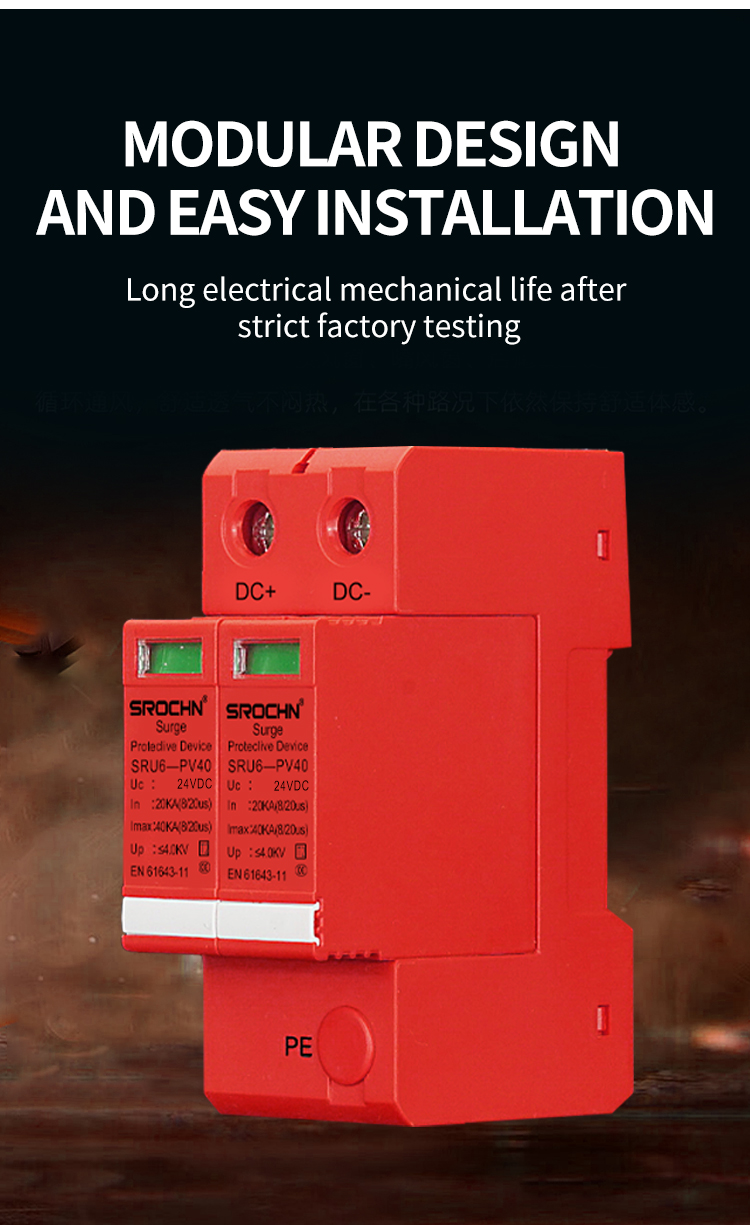

• Easy installation through DIN rail mounting system

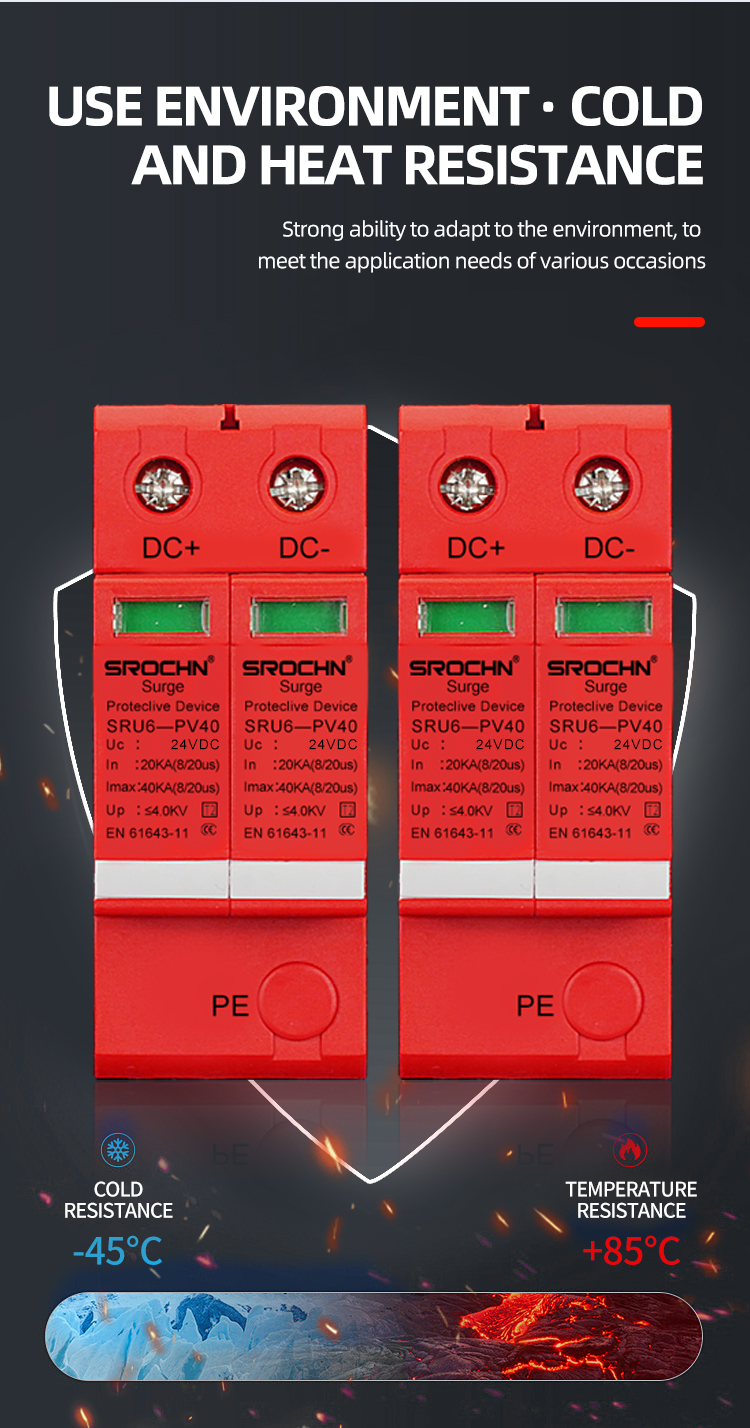

• Wide operating temperature range from -45°C to +85°C
• Full compliance with IEC 6164311 international standards
• Durable plastic housing with flameretardant properties
Application Scenarios
The device is suitable for deployment in various applications including:
Security and surveillance systems
Telecommunications equipment
Industrial control systems
Renewable energy applications
Building automation systems
Low voltage DC power networks
Electronic equipment protection
Transportation signaling systems
Data communication infrastructure

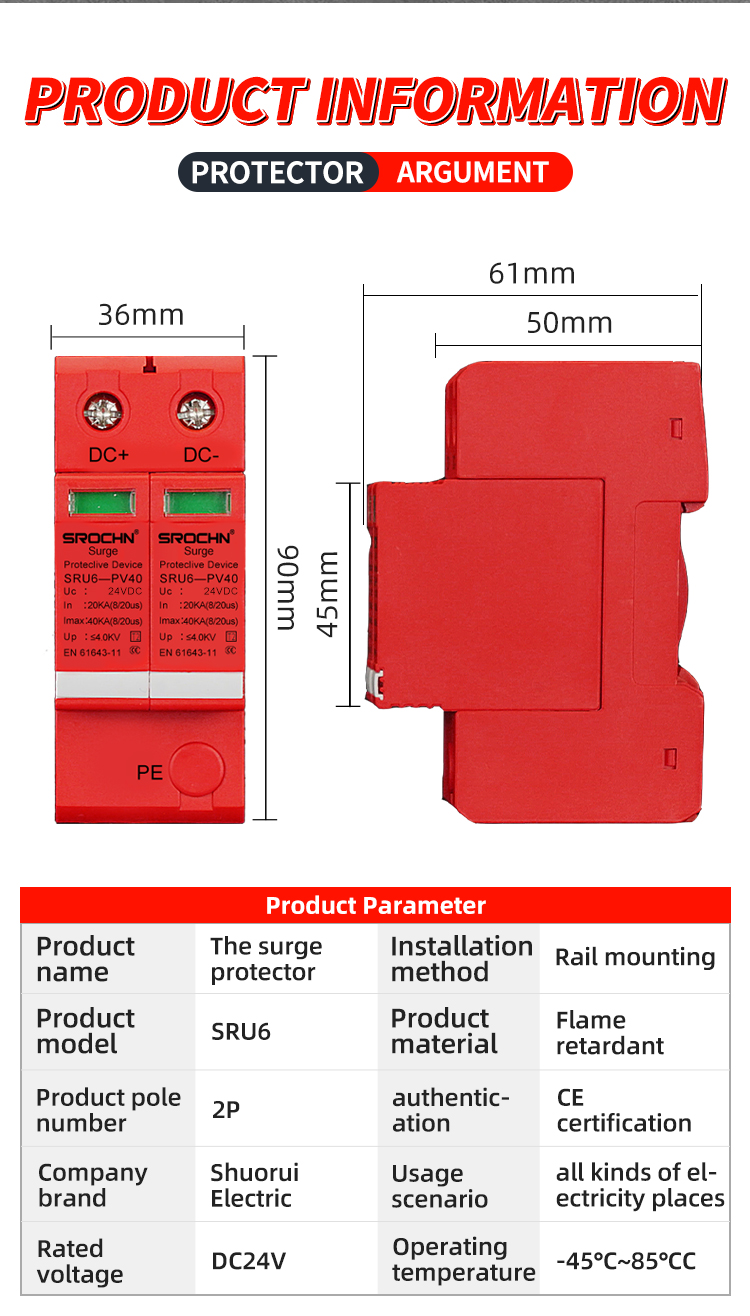

Technical Specifications
Maximum Discharge Current: 40kA (8/20μs)
Nominal Discharge Current: 20kA (8/20μs)
Rated Voltage: 24VDC
Protection Level: T2
Number of Poles: 2P
Housing Material: Plastic (UL94 V0)
Response Time: <25 nanoseconds
Operating Temperature Range: -45°C to +85°C
Protection Mode: L+/L/PE
Connection Type: Screw terminal

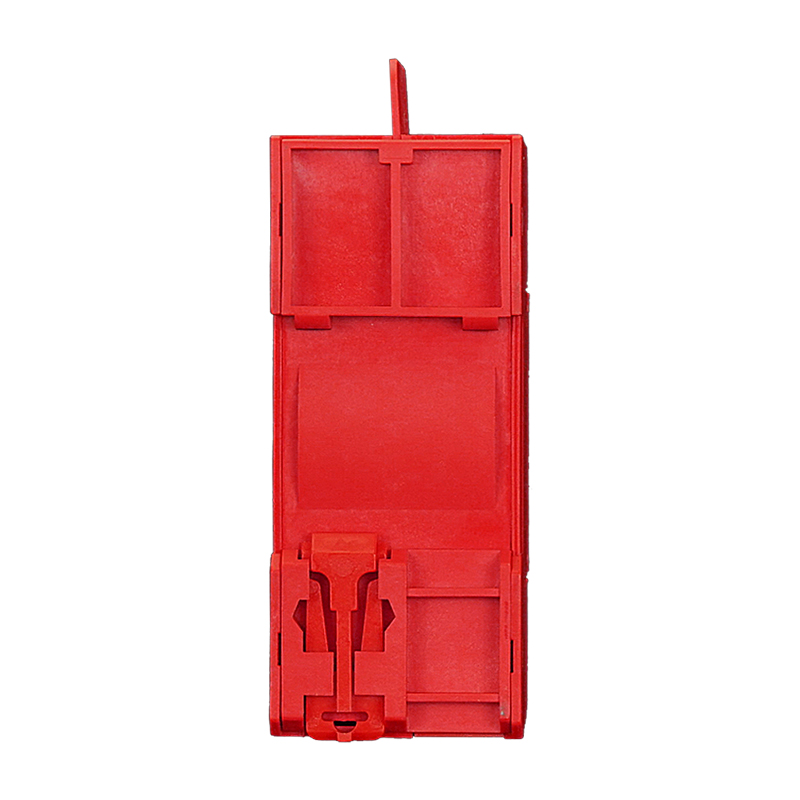

Mounting: 35mm DIN rail
Protection Rating: IP20
Standards Compliance: IEC 6164311
This surge protective device offers reliable performance and essential protection for low voltage DC systems. Its twopole configuration provides adequate system protection while the robust construction ensures equipment safety and system reliability across various applications. The device meets international standards for surge protective devices and provides effective protection against electrical surges and transient overvoltages in 24VDC systems. The compact design and reliable performance make it an ideal solution for applications requiring surge protection in low voltage DC environments.
