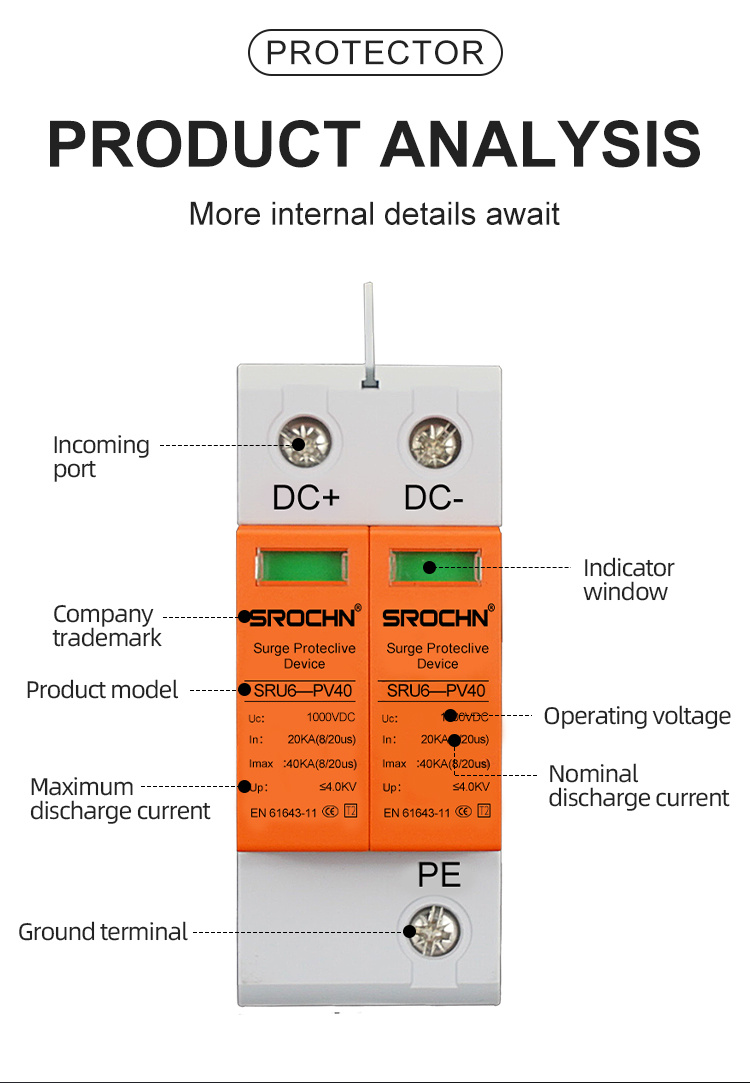

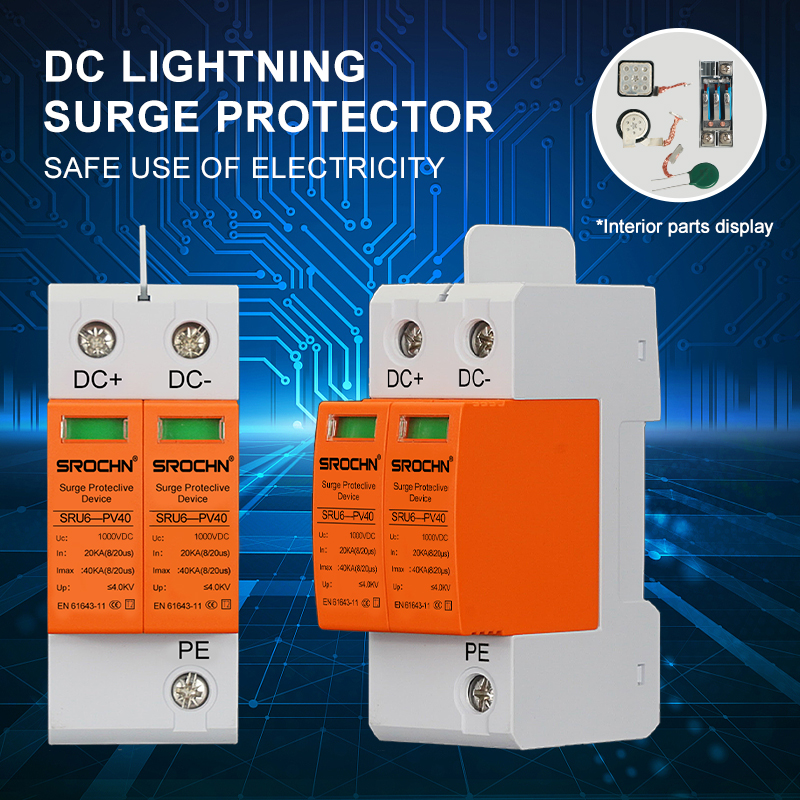

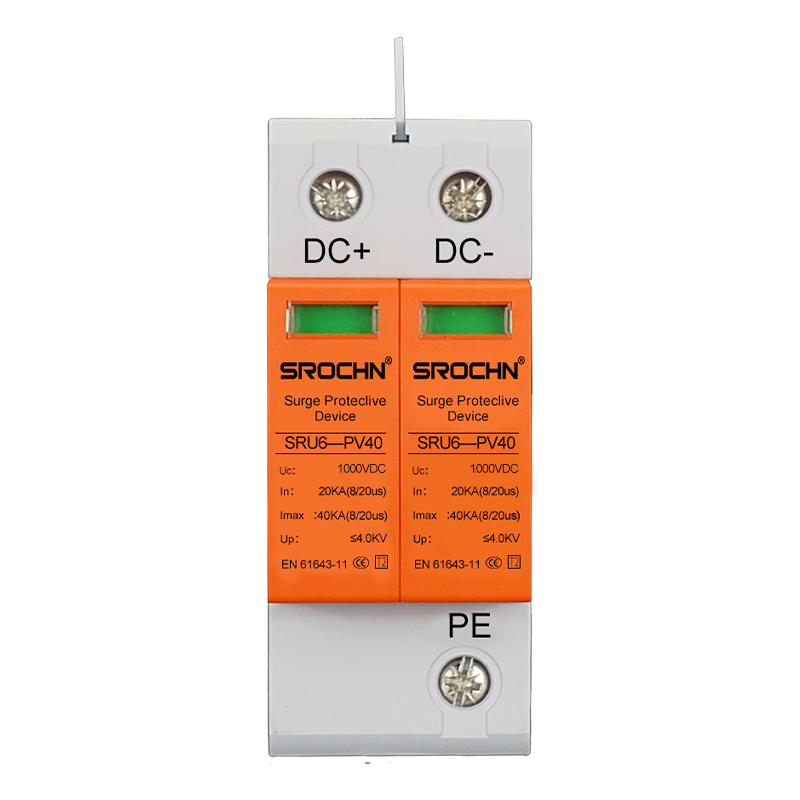

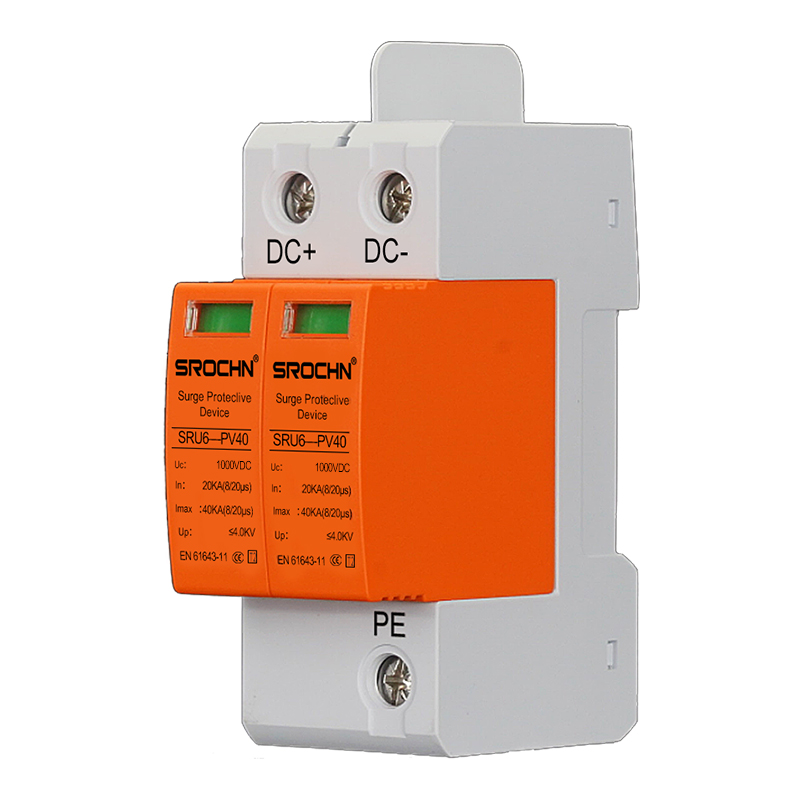

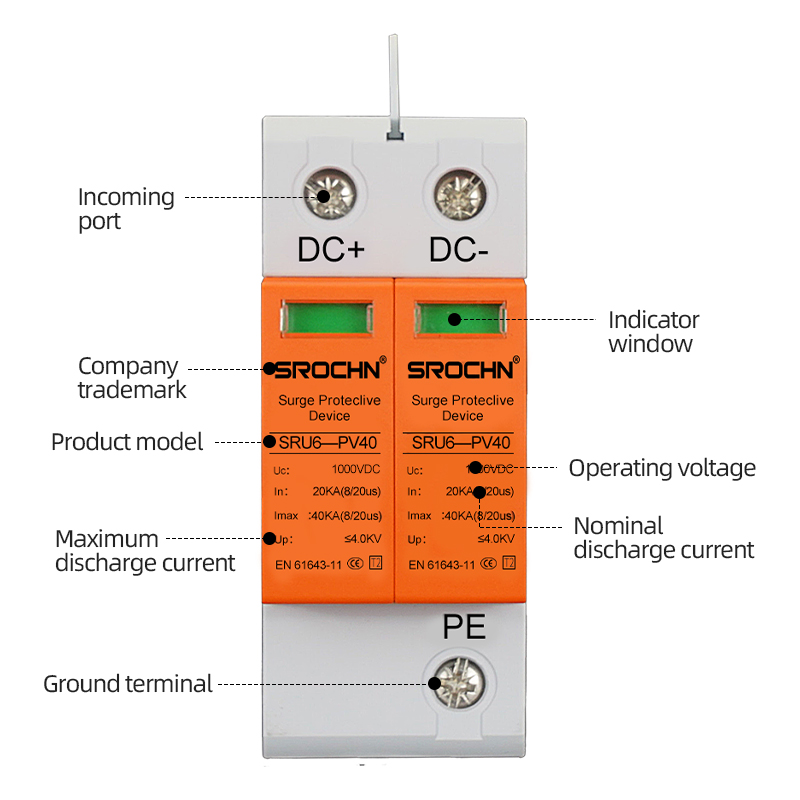

Advanced 2P 1000VDC T2 Surge Protective Device with 40kA Maximum Discharge Capacity
Key Features and Advantages
• UltraHigh Voltage Compatibility: Specifically designed for 1000VDC systems with enhanced insulation properties
• Superior Surge Protection: 40kA maximum discharge capacity provides exceptional defense against severe electrical surges
• Advanced Varistor Technology: Utilizes highperformance metal oxide varistors with nanosecondlevel response time
• Comprehensive Safety Systems: Integrated thermal protection and automatic disconnection mechanism
• Visual Status Indication: Multicolor LED system for clear operational status monitoring
• Simplified Maintenance: Easytoaccess components and DIN rail mounting design
• Extended Temperature Range: Reliable operation from - 45°C to +85°C ambient temperatures
• International Certification: Complies with IEC 6164311 and international safety standards
Application Scenarios
Industrial Power Systems: Protection for motor drives, PLCs, and control systems in manufacturing plants
Renewable Energy Applications: Safeguarding solar inverters and monitoring systems in utilityscale photovoltaic installations
Electric Vehicle Infrastructure: Protection for highpower charging stations and distribution networks
Rail Transportation: Ensuring reliability of traction systems and signaling equipment
Energy Storage Systems: Protection for battery management and power conversion systems
Telecommunications: Safeguarding data center power infrastructure and communication equipment
Industrial Automation: Protection for highvoltage equipment in automated manufacturing processes

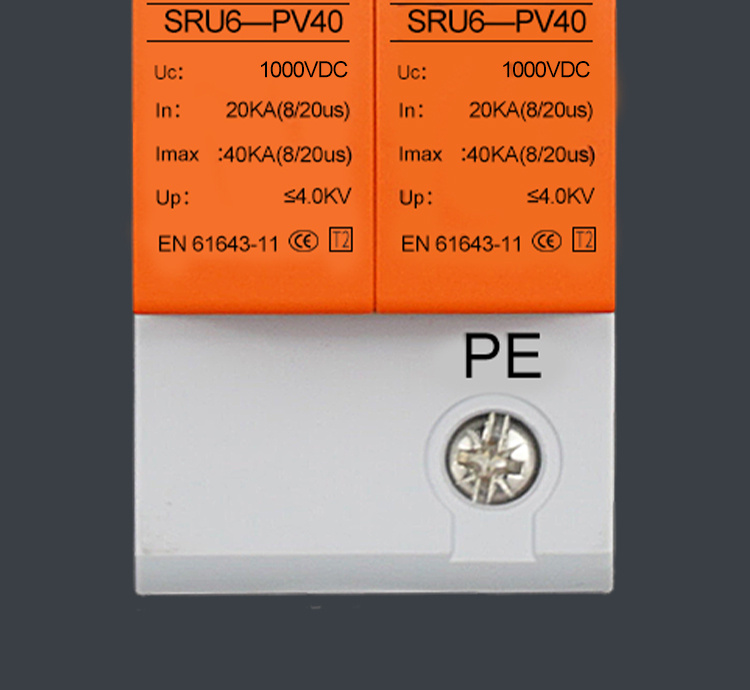

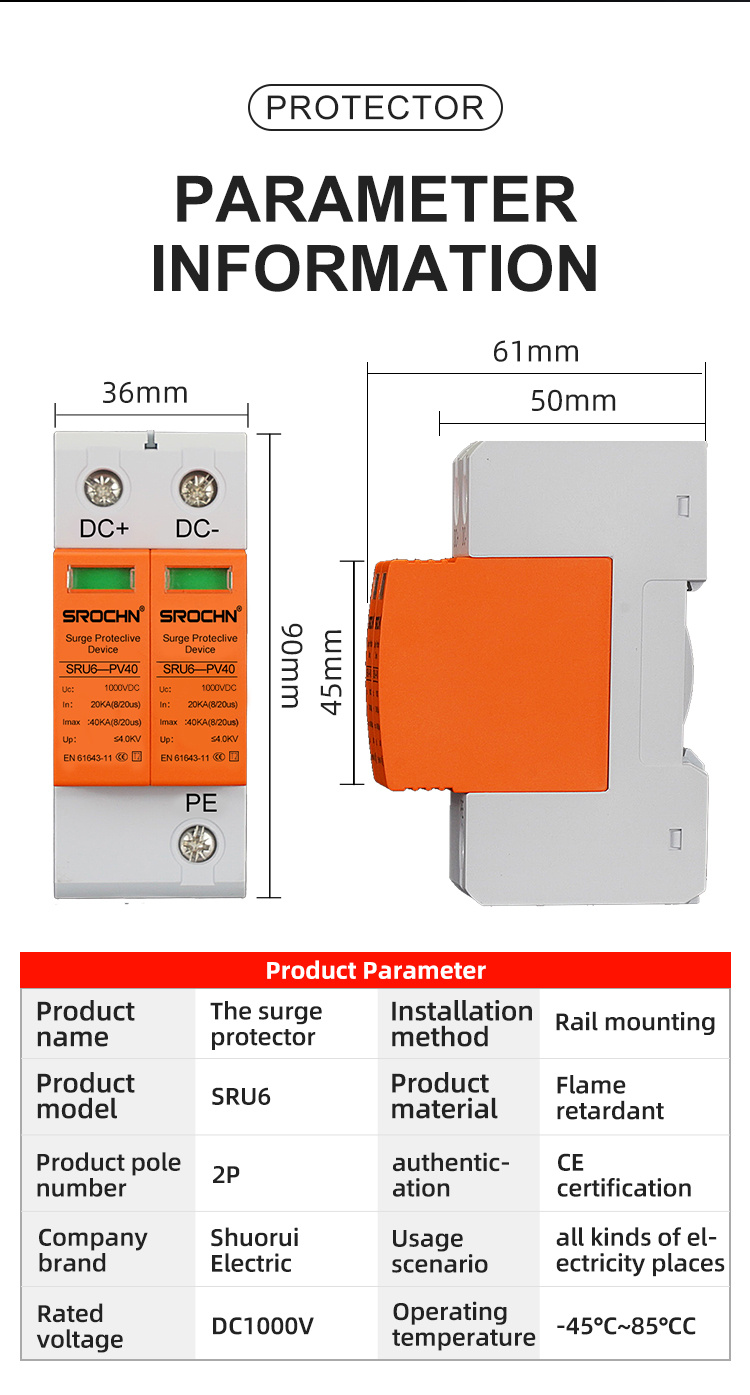

Technical Specifications
Maximum Discharge Current: 40kA (8/20μs )
Nominal Discharge Current: 20kA (8/20μs )
Rated Voltage: 1000VDC
Protection Level: ≤4.0kV
Protection Level: T2 (Class II)
Number of Poles: 2P
Response Time: <25 nanoseconds
Operating Temperature: - 45°C to +85°C
Protection Mode: L+/L/PE configuration
Connection Method: Screw terminal type

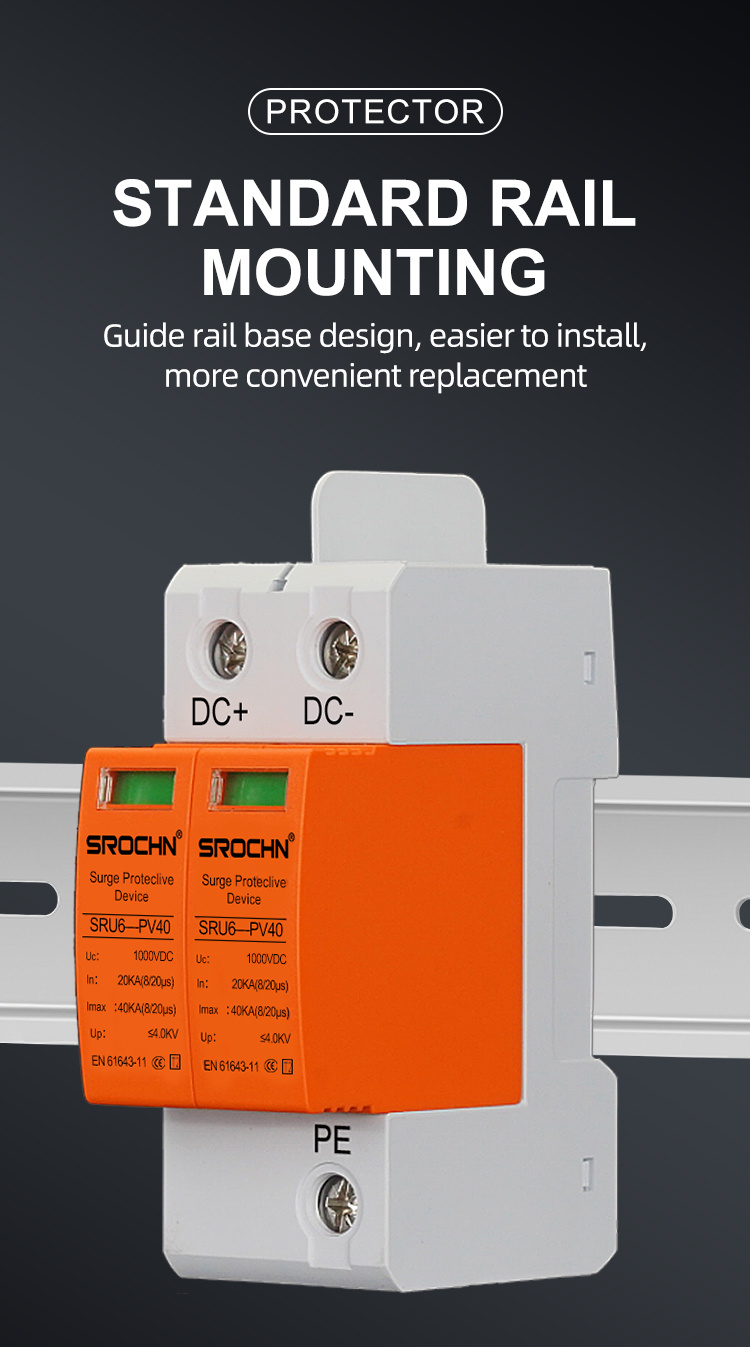

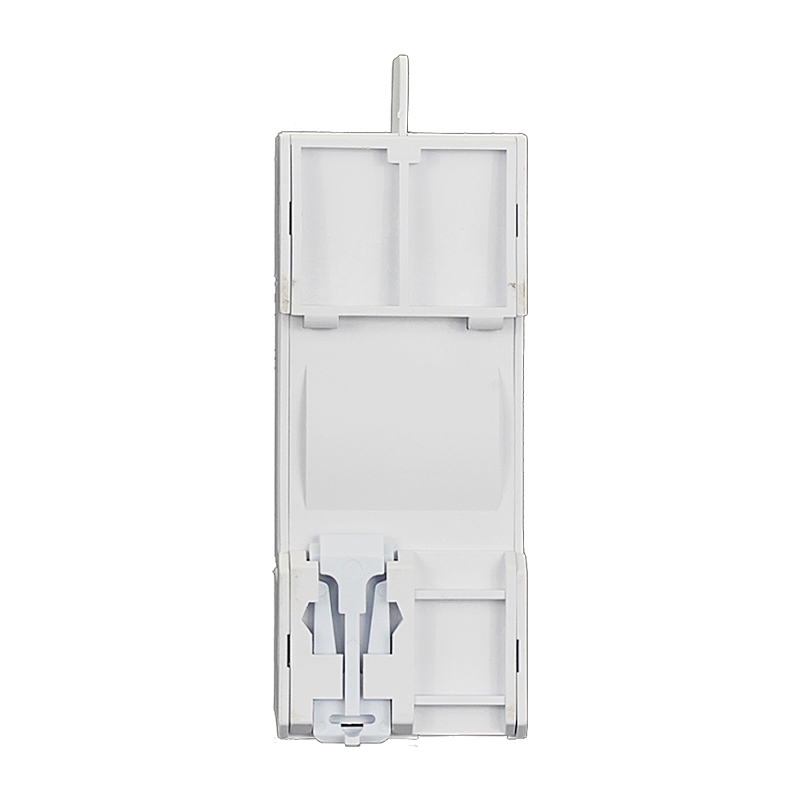

Mounting System: 35mm DIN rail compatible
Ingress Protection: IP20 rating
Compliance Standards: IEC 6164311, EN 6164311
This surge protective device incorporates cuttingedge technology and robust engineering to deliver comprehensive protection for highvoltage DC systems. Its advanced features and reliable performance make it an ideal solution for critical applications where equipment protection and system reliability are paramount. The device's design ensures easy integration into existing electrical systems while providing peace of mind through its proven surge protection capabilities and compliance with international safety standards.
