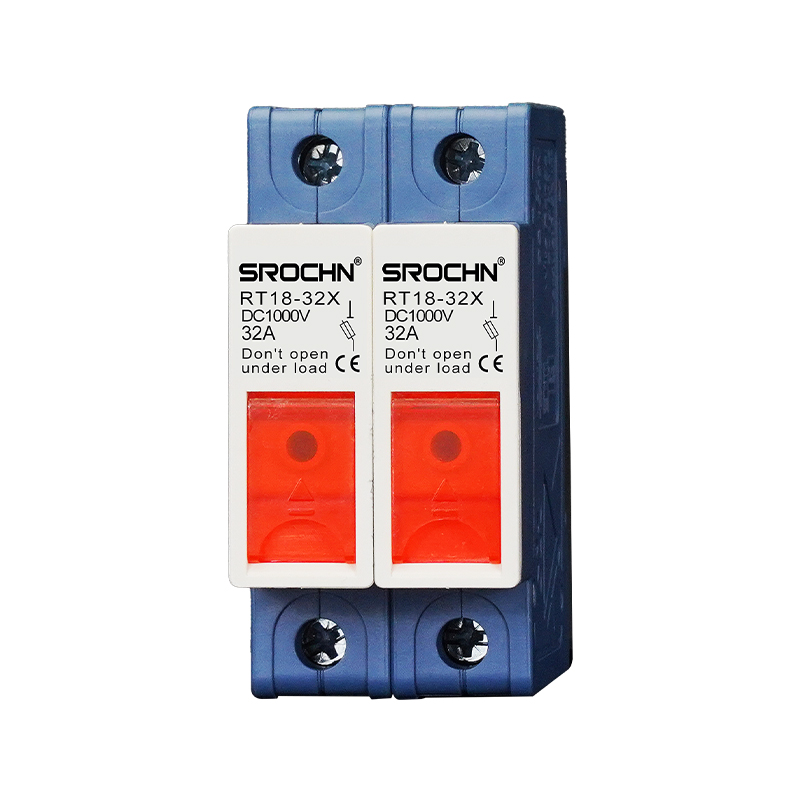

The Solar Fuse Uses a Photovoltaic DC1000V 32A Fuse (1).jpg
The Solar Fuse Uses a Photovoltaic DC1000V 32A Fuse (2).jpg
The Solar Fuse Uses a Photovoltaic DC1000V 32A Fuse (3).jpg

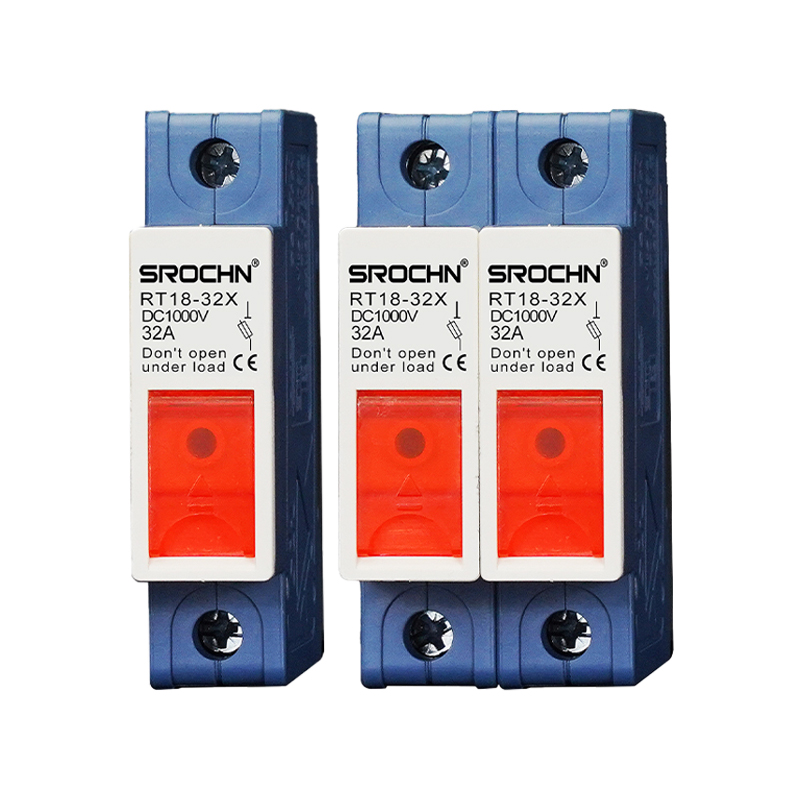

The Solar Fuse Uses a Photovoltaic DC1000V 32A Fuse

This series of fuses is suitable for circuits with rated DC voltage up to 1000Vand rated current up to 30A They are connected in series and parallel withphotovoltaic panels and batteries to provide short-circuit breaking protection forcharging and converting systems; Simultaneously, for photovoltaic power plants,combiner inverter rectification systems, and short-circuit fault breaking protectionAnd for the rapid breaking protection of surge current and short-circuit faultovervoltage in photovoltaic power generation systems, with a rated breaking capacityof 20KA. 0ur company is currently conducting relevant tests to further improve thebreaking capacity of the product. The product complies with the provisions of theInternational Electrotechnical Commission standard EC60269.

    Contact us
    product details
    Detailed picture

    Normal working conditions

    The upper limit of ambient air temperature shall not exceed 90 ℃: The lower limit of ambient air temperature shall not be less than -40 ℃; The elevation of theinstallation site should not exceed 2000m (if it is to exceed this 2000m, therequirements need to be specified, and our company can design and develop accordingto customer requirements).
    Usage category
    "gPy" refers to a DC fuse with full range breaking capacity used for overcurrentprotection in solar photovoltaic systems.

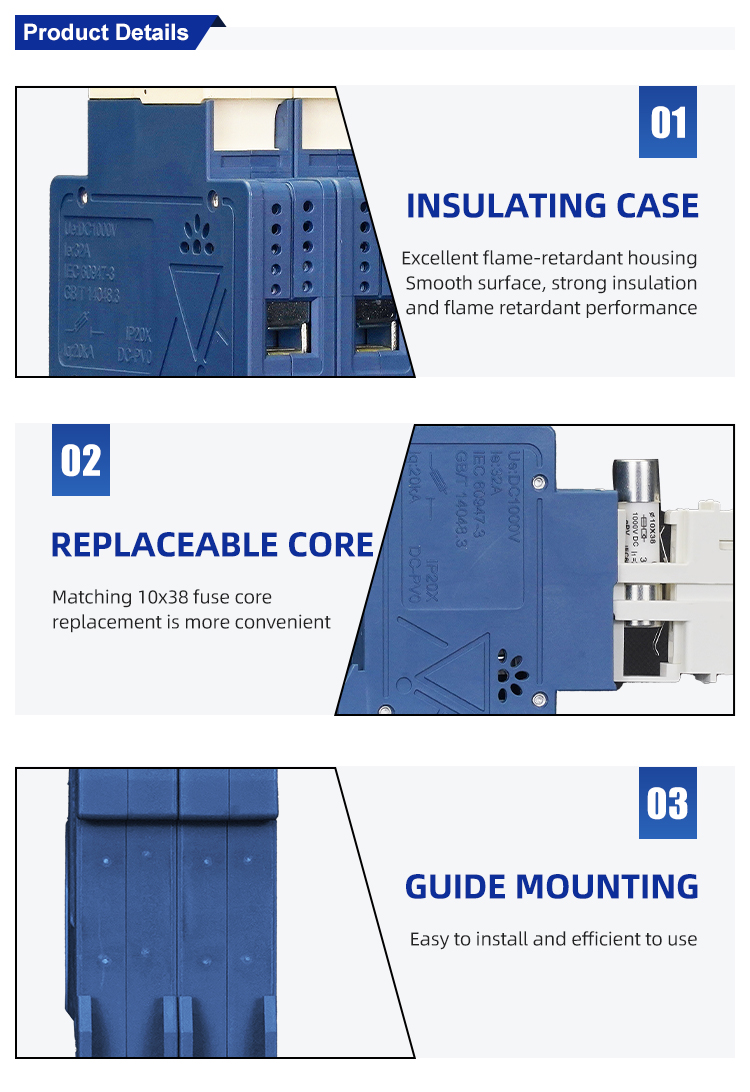

    Product features

    ◆ INSULATING CASE

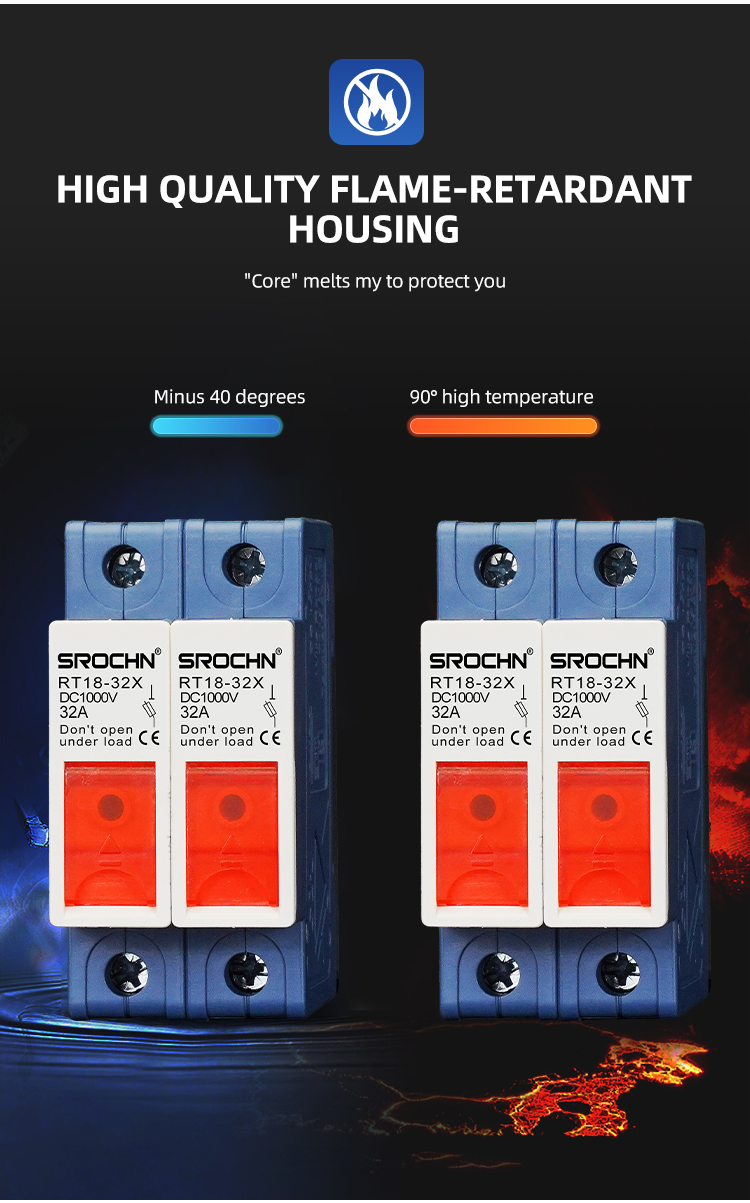

    High quality flame-retardant housingSmooth surface, strong insulationand flame retardant performance

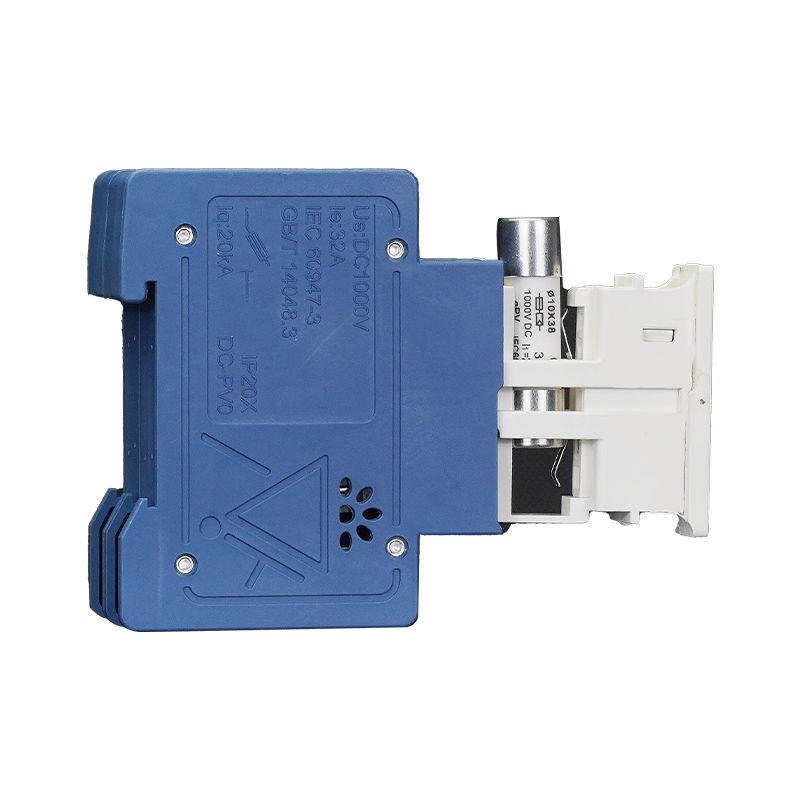

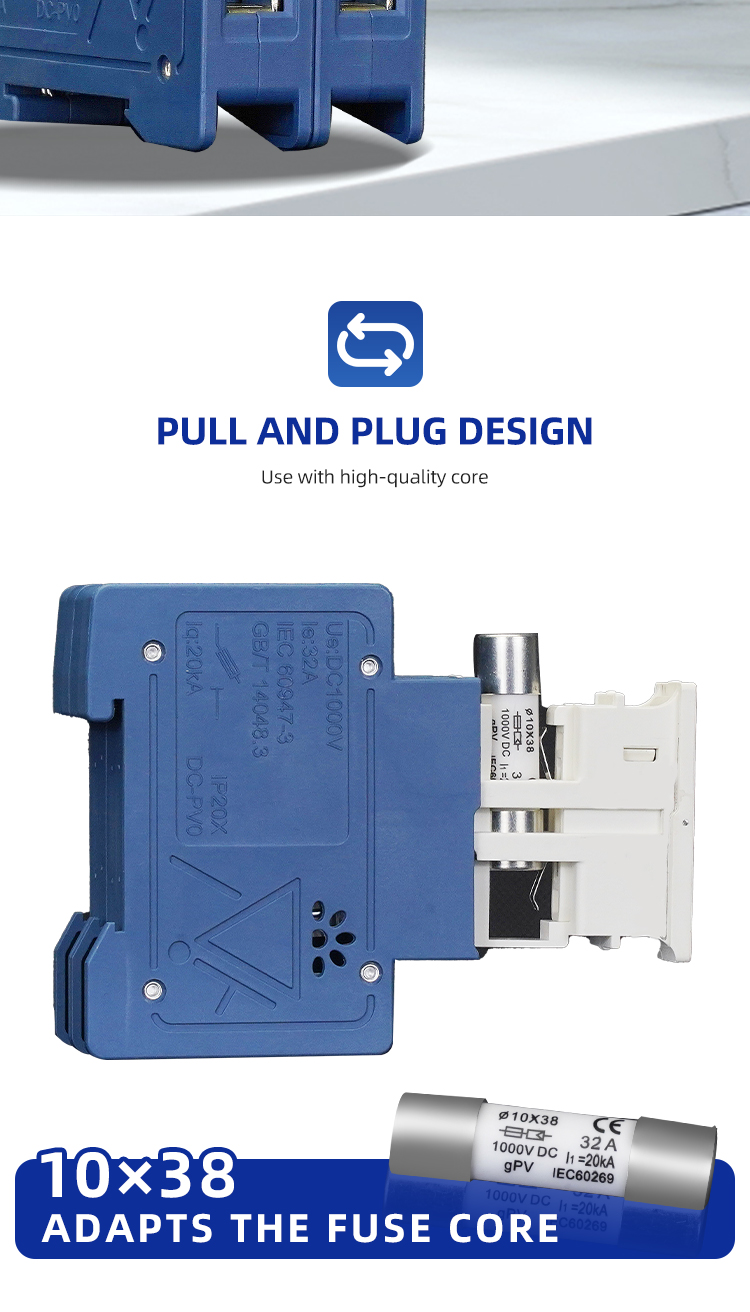

    ◆ REPLACEABLE CORE
    Use with high-quality core matching 10x38 fuse corereplacement is more convenient\

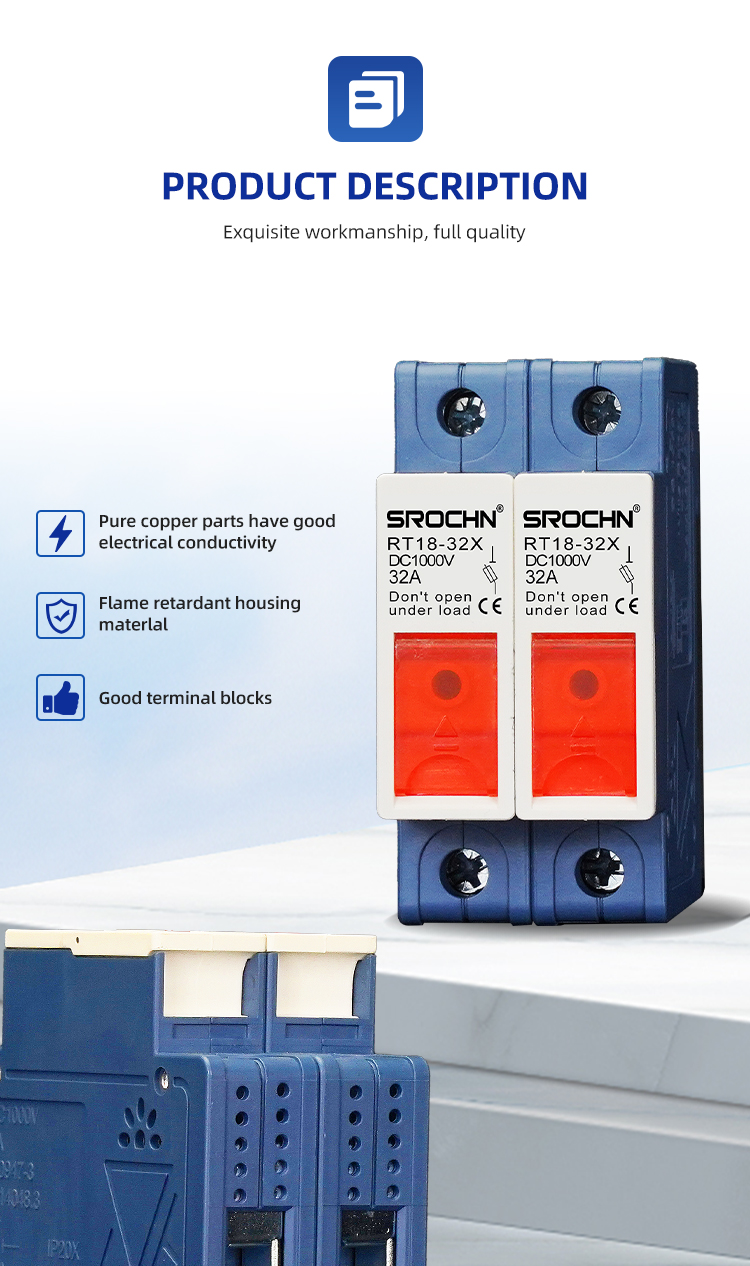

    ◆ Pure copper component
    It has good electrical conductivity
    ◆ GUIDE MOUNTING
    Easy to install and efficient to use
    The variablecross-sectiormelt madeof puresilver sheetis encapsulatedn a melt tubemadeof high-strengthporcelain.The melt tube is filled with chemicallytreatedhigh-purityquartzsandand specially treatedchemicalsas the arc extinguishingmedium,The two ends of the melt arefirmlyconnectedviththecontactby spotwelding.

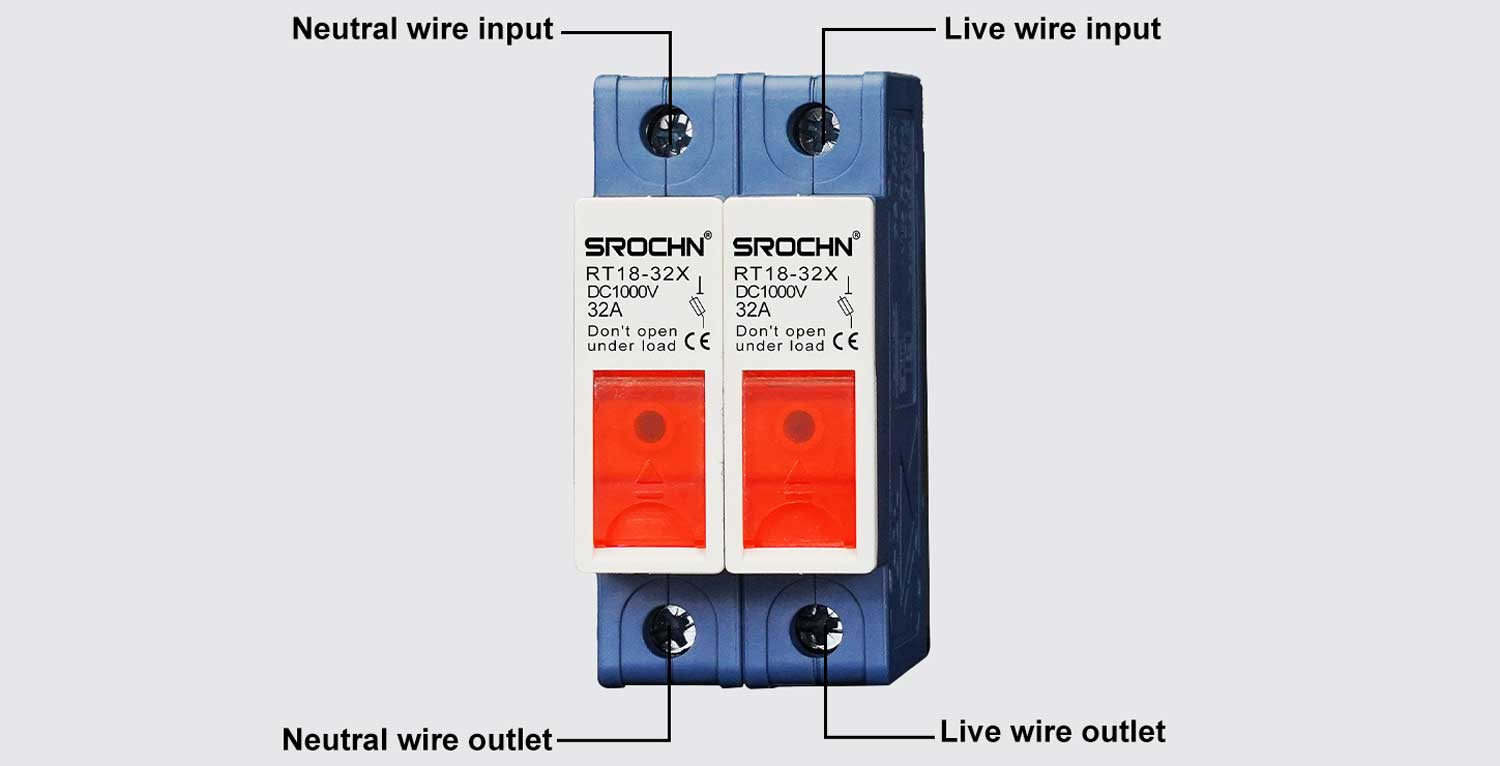

    Wiring Method

    Wiring-Method1

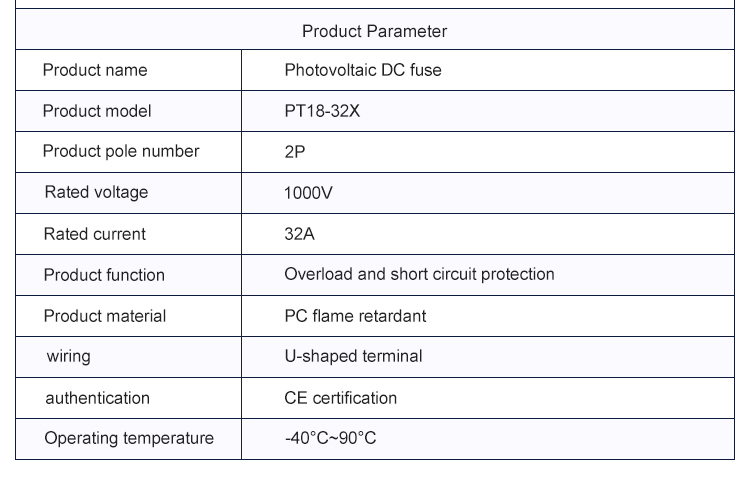

    Parameter Information

    Product name Photovoltaic DC fuse Product function Overload and short circuit protection
    Product model PT18-32X Product material PC flame retardant
    Product pole number 2P Wiring U-shaped terminal
    Overcurrent protection value 1000V Authentication CE certification
    Rated current 32A Operating temperature -40°C~90°C

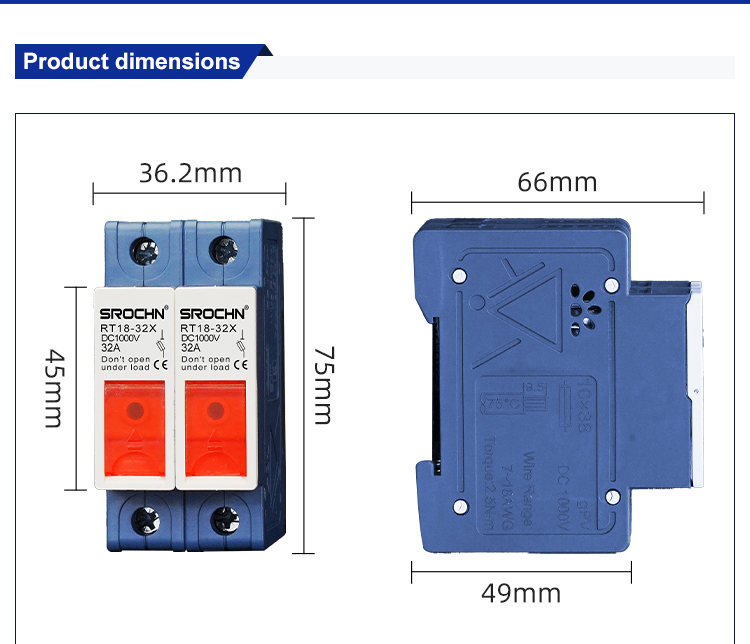

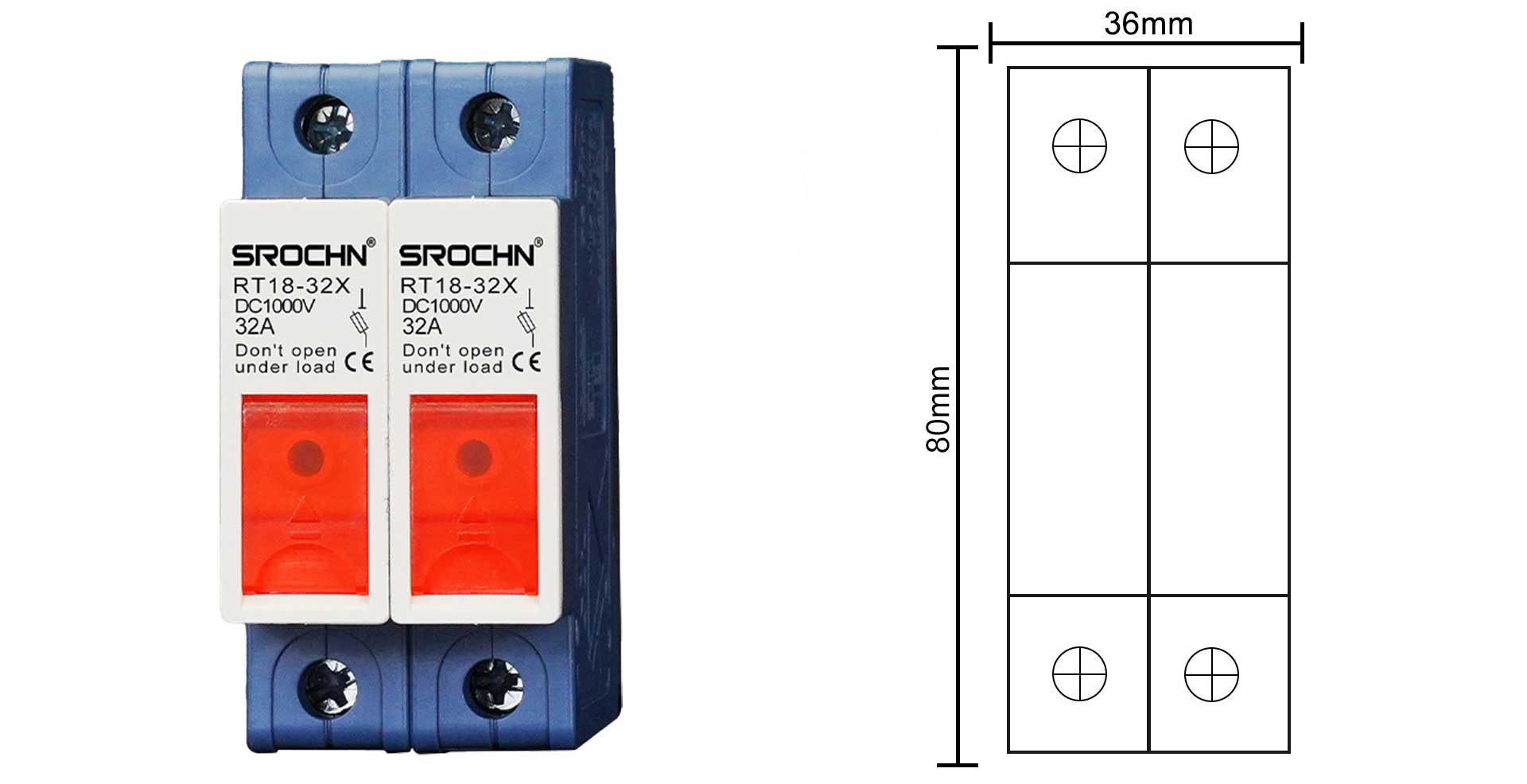

    Product Size

    Wiring-Method

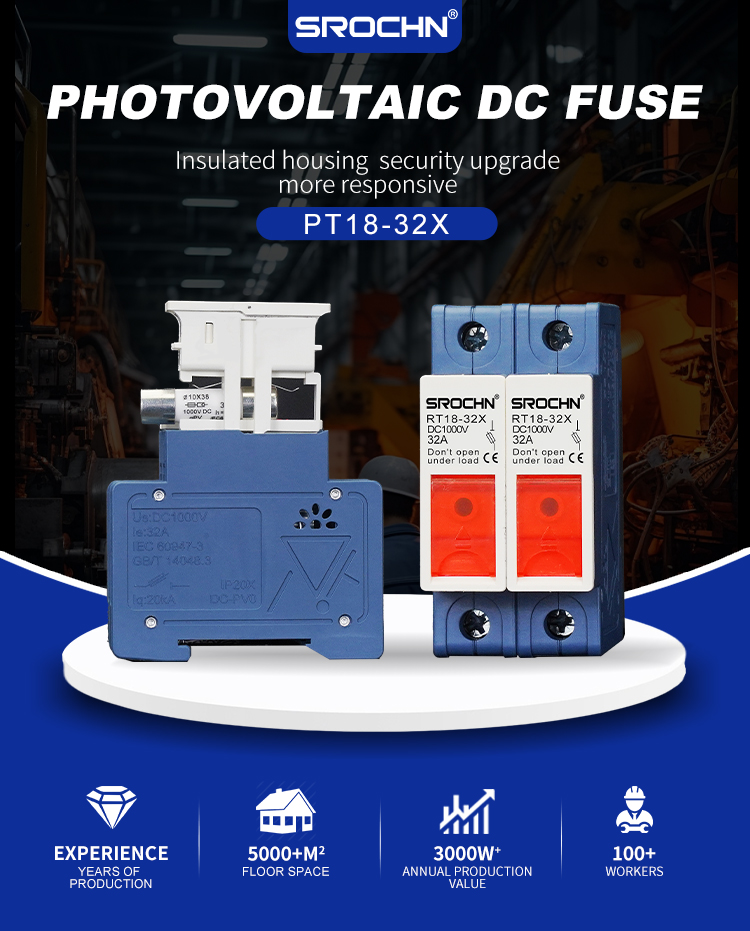

    The Solar Fuse (1)The Solar Fuse (2)The Solar Fuse (3)The Solar Fuse (4)The Solar Fuse (5)The Solar Fuse (6)The Solar Fuse (7)The Solar Fuse (8)The Solar Fuse (9)The Solar Fuse (11)
